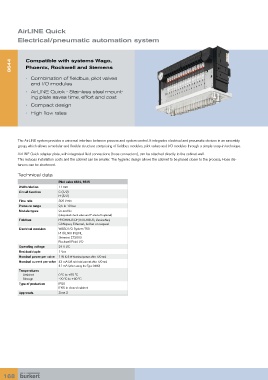

AirLINE Quick
Electrical/pneumatic automation system

8644 Compatible with systems Wago,
Phoenix, Rockwell and Siemens

• Combination of fieldbus, pilot valves
and I/O modules

• AirLINE Quick - Stainless steel mount-
ing plate saves time, effort and cost
• Compact design

• High flow rates

The AirLINE system provides a universal interface between process and system control. It integrates electrical and pneumatic devices in an assembly
group, which allows a modular and flexible structure comprising of fieldbus modules, pilot valves and I/O modules through a simple snap-in technique.
AirLINE Quick adapter plate, with integrated fluid connections (hose connectors), can be attached directly to the cabinet wall.
This reduces installation costs and the cabinet can be smaller. The hygienic design allows the cabinet to be placed closer to the process. Hose dis-
tances can be shortened.

Technical data
Pilot valve 6524, 6525
Width/station 11 mm
Circuit function C (3/2)
H (5/2)
Flow rate 300 l/min
Pressure range 2,5 to 10 bar
Module types 2x and 8x
(integrated check valve and P-shut-off optional)
Fieldbus PROFIBUS DP, INTERBUS, DeviceNet,
CANopen, Ethernet, further on request
Electrical modules WAGO I/O System 750
PHOENIX INLINE
Siemens ET200S
Rockwell Point I/O
Operating voltage 24 V DC
Residual ripple 1 Vss
Nominal power per valve 1 W (0.5 W Nominal power after 120 ms)
Nominal current per valve 43 mA (28 mA hold current after 120 ms)
41 mA (when using the Type 0460)
Temperatures
Ambient 0 ºC to +55 °C
Storage -20 ºC to +60 °C
Type of protection IP20
IP65 in closed cabinet
Approvals Zone 2
