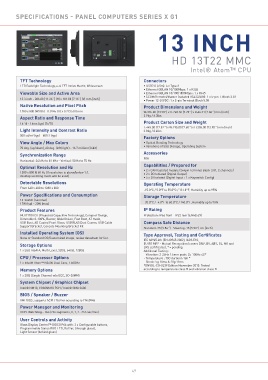

specifications - paneL coMpUteRs seRies X G1


                                                                       13 incH






                                                                             HD 13T22 MMC

                                                                                      Intel® Atom™ CPU


          tft technology                                         connectors
          LED Backlight Technology, a-si TFT Active Matrix, Widescreen  • USB2.0 (<5m): 4 x Type A
                                                                 • Ethernet GBLAN 10/100Mbps: 1 x RJ45
          Viewable size and active area                          • Ethernet GBLAN 10/100/1000Mbps: 1 x RJ45
          13.3 inch - 286.08 [11.26’’] (H) x 181.80 [7.16’’] (V) mm [inch]  • SCOM/Remotel/Buzzer (isolated RS422/485): 1 x 5-pin T. Block 3.81
                                                                 • Power 12-24VDC: 1 x 2-pin Terminal Block 5.08
          native Resolution and pixel pitch                      product Dimensions and Weight
          1280 x 800 (WXGA) - 0.0745 (H) x 0.2235 (V) mm         W:355.00 [13.98’’] x H:248.50 [9.78’’] x D:66.31 [2.60’’] mm [inch]
          aspect Ratio and Response time                         2.9kg / 6.3lbs
          16:10 - 16ms (typ) (Tr/Tf)                             product carton size and Weight
                                                                 L:445.00 [17.52’’] x W:195.00 [7.68’’] x H:355.00 [13.98’’] mm [inch]
          Light intensity and contrast Ratio                     3.8kg / 8.4lbs
          500 cd/m² (typ) - 800:1 (typ)                          factory options
          View angle / Max colors                                • Optical Bonding Technology
          70 deg. (up/down), 60 deg. (left/right) - 16.7 million (24bit)  • Variations of SSD Storage, Operating System
          synchronization Range                                  accessories
          Horizontal: 24 kHz to 81 kHz - Vertical: 50 Hz to 75 Hz  N/A
          optimal Resolution and Hz                              capabilities / prepared for
          1280 x 800 @ 60 Hz (If resolution is above/below 1:1,  • 2 x CAN Isolated module (2x4pin Terminal Block 3.81, 2 channels)
                                                                 • 2 x DO Isolated (Digital Output)
          desktop scrolling mode will be used)
                                                                 • 5 x DI Isolated (Digital Input + 1 x Keyswitch Confi g)
          Detectable Resolutions                                 operating temperature
          From 640 x 480 to 1280 x 800
                                                                 -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
          power specifi cations and consumption                   storage temperature
          12-24VDC (nominal)
          17W (typ) - 20W (max)                                  -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
          product features                                       ip Rating
          MULTITOUCH (Projected Capacitive Technology), Compact Design,  Protection: IP66 front - IP22 rear (EN60529)
          Dimmable 0-100%, Buzzer, WakeOnLan, Fast Boot, AT mode,
          USB Boot, AG Coated Front Glass, USB/RJ45 Dust Covers, USB Cable  compass safe Distance
          Support Bracket, Console Mounting Bracket Kit
                                                                 Standard: 25 [9.84’’] - Steering: 15 [5.90’’] cm [inch]
          installed operating system (os)                        type approval, testing and certifi cates
          None or Standard OS/Customized image, review datasheet for list.
                                                                 IEC 60945 4th (EN 60945:2002), IACS E10,
          storage options                                        EU RO MR* - Mutual Recognition (covers DNV, BV, ABS, GL, NK and
                                                                 LRS certifi cates), * = pending
          1 x SSD mSATA, Multi Level, 32GB, 64GB, 128GB          Additional Testing:
                                                                 - Vibration: 2-25Hz 1.6mm peak; 25-100Hz 4G*
          cpU / processor options                                - Temperature : 70C duration 16h *
          1 x Intel® Atom™ N2600 Dual Core, 1.60GHz              - Shock: 5g 10ms & 20g 11ms
                                                                 *DNVGL-CG-0339 Edition November 2015. Tested
          Memory options                                         according to temperature class B and vibration class B
          1 x 2GB (Single Channel w/o ECC, SO-DIMM)
          system chipset / Graphics chipset
          Intel® NM10, CG82NM10 PCH / Intel® GMA 3600
          Bios / speaker / Buzzer
          AMI BIOS, supports ACPI / Buzzer according to EN60945
          power Manager and Monitoring
          ACPI. WatchDog: : Yes (256 segments, 0, 1, 2...255 sec/min)
          User controls and activity
          Glass Display Control™ (GDC) IP66 with: 3 x Confi gurable buttons,
          Programmable Status RGB LED, Buzzer, (through glass),
          Light Sensor (behind glass)
