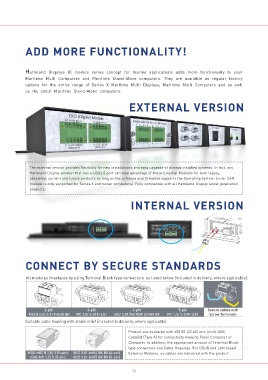

aDD MoRe fUnctionaLity!

hatteland Displays IO module series concept for marine applications adds more functionality to your
Maritime Multi Computers and Maritime Stand-Alone computers. They are available as regular factory
options for the entire range of Series X Maritime Multi Displays, Maritime Multi Computers and as well
as the latest Maritime Stand-Alone computers.

eXteRnaL VeRsion

The external version provides flexibility for new installations and easy upgrade of already installed systems. In fact, any
Hatteland Display product that has a USB2.0 port can take advantage of these External Modules for both legacy,
obsoleted, current and future products as long as the software and firmware supports the Operating System. (note: CAN
module is only supported for Series X and newer computers). Fully compatible with all Hatteland Display latest generation
products.

inteRnaL VeRsion

connect By secURe stanDaRDs

All modules interfaces by using Terminal Block type connectors as listed below (included in delivery, where applicable):

2-pin 4-pin 4-pin 5-pin Secure cables with
mSTB 2,5/ 2-STF-5,08 BK mC 1,5/ 5-STF-3,81 BCZ 3.81/04/180F Sn BK BX mC 1,5/ 5-STF-3,81 Screw Terminals
Suitable cable housing with strain relief (included in delivery, where applicable):

Product are delivered with 600.00 [23.62] mm [inch] USB
Cable(s) (Type A) for connectivity towards Panel Computer or
Computer. In addition, the appropriate amount of Terminal Block
type connectors and Cable Housings. For DSUB and LAN based
Kgg-mSTB 2,5/ 2 (2-pin) BCZ 3.81 Ah04 BK BX (4-pin) External Modules, no cables are delivered with the product.
Kgg-mC 1,5/ 5 (5-pin) BCZ 3.81 Ah05 BK BX (5-pin)
