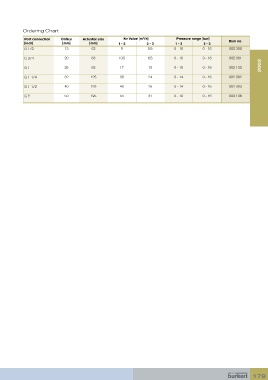

Ordering Chart
3
Port connection Orifice Actuator size Kv Value [m /h] Pressure range [bar]
[inch] [mm] [mm] 1 - 2 2 - 3 1 - 2 2 - 3 Item no.
G 1/2 13 63 9 5.5 0 - 16 0 - 16 002 300
G 3/4 20 63 10.5 6.5 0 - 16 0 - 16 002 301
2002
G 1 25 63 17 10 0 - 10 0 - 16 002 133
G 1 1/4 32 125 38 24 0 - 14 0 - 16 002 302
G 1 1/2 40 125 40 26 0 - 14 0 - 16 002 303
G 2 50 125 55 37 0 - 10 0 - 16 002 136
