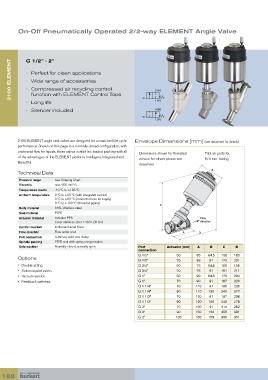

On-Off Pneumatically Operated 2/2-way ELEMENT Angle Valve

2100 ELEMENT G 1/2” - 2” 2 (A)

• Perfect for clean applications
• Wide range of accessories
• Compressed air recycling control
function with ELEMENT Control Tops

• Long life 1 (P)
• Silencer included 4 (B)

1 (P)

2100 ELEMENT angle seat valves are designed for unmatched life cycle Envelope Dimensions [mm] (see datasheet for details)
performance. Shown on this page in a normally closed configuration, with
underseat flow for liquids, these valves exhibit live loaded packing with all
Dimensions shown for threaded Pilot air ports for
of the advantages of the ELEMENT platform: Intelligent, Integrated and
version for others please see 6/4 mm tubing
Beautiful.
datasheet
Technical Data
Pressure range See Ordering Chart
Viscosity max. 600 mm²/s
Temperature media -10 ºC to +185 ºC
Ambient temperature 0 °C to +55 °C (with integrated control)
0 °C to +60 °C (connector hose air supply)
0 °C to +100 °C (threaded piping)
Body material 316L stainless steel
Seal material PTFE
Actuator material Actuator PPS
Cover stainless steel 1.4561 (316Ti)
Control medium Instrument air at 6 bar
Flow direction Flow under seat
Port connection G-thread, weld end, clamp
Spindle packing PTFE seal with spring compensation
Safe position Normally closed, normally open Port Actuator [mm] A B C D
connection
G 1/2” 50 65 64.5 158 185
Options G 1/2” 70 65 91 173 201
• Double acting G 3/4” 50 75 64.5 166 195
• Solenoid pilot valves G 3/4” 70 75 91 181 211
• Vacuum version G 1” 50 90 64.5 172 204
• Feedback switches G 1” 70 90 91 187 220
G 1 1/4” 70 110 91 195 235
G 1 1/4” 90 110 120 240 277
G 1 1/2” 70 120 91 197 236
G 1 1/2” 90 120 120 242 278
G 2” 70 150 91 214 262
G 2” 90 150 120 255 301
G 2” 130 150 159 306 351
