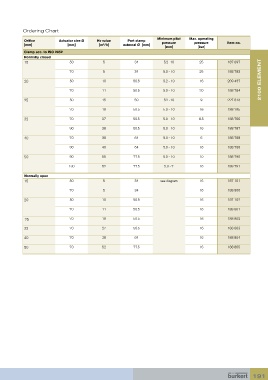

Ordering Chart
Minimum pilot Max. operating
Orifice Actuator size Ø Kv value Port clamp pressure pressure Item no.
[mm] [mm] [m³/h] external Ø [mm]
[mm] [bar]
Clamp acc. to ISO 2852
Normally closed
2100 ELEMENT
15 50 5 34 5.2 -10 25 187 097
70 5 34 5.0 - 10 25 188 783
20 50 10 50.5 5.2 - 10 16 209 437
70 11 50.5 5.0 - 10 20 188 784
25 50 15 50 5.2 -10 9 227 613
70 18 50.5 5.0 - 10 16 188 785
32 70 27 50.5 5.0 - 10 8.5 188 786
90 28 50.5 5.0 - 10 16 188 787
40 70 38 64 5.0 - 10 6 188 788
90 40 64 5.0 - 10 16 188 789
50 90 55 77.5 5.0 - 10 10 188 790
130 62 77.5 5.0 - 7 16 188 791
Normally open
15 50 5 34 see diagram 16 187 101
70 5 34 16 188 800
20 50 10 50.5 16 187 102
70 11 50.5 16 188 801
25 70 18 50.5 16 188 802
32 70 27 50.5 16 188 803
40 70 38 64 16 188 804
50 70 52 77.5 16 188 805
