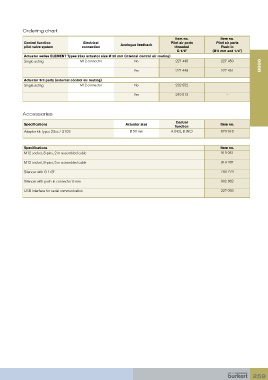

Ordering chart
Item no. Item no.
Control function Electrical Pilot air ports Pilot air ports
pilot valve system connection Analogue feedback threaded Push-in
G 1/8" (Ø 6 mm and 1/4")
Actuator series ELEMENT Types 23xx actuator size Ø 50 mm (internal control air routing)
Single acting M12 connector No 227 448 227 450 8696

Yes 227 449 227 451

Actuator 3rd party (external control air routing)
Single acting M12 connector No 232 652 -

Yes 249 013 -

Accessories
Control
Specifications Actuator size Item no.
function
Adapter kit Types 23xx / 2103 Ø 50 mm A (NO), B (NC) 679 918

Specifications Item no.
M12 socket, 8-pins, 2 m assembled cable 919 061
M12 socket, 8-pins, 5 m assembled cable 919 267

Silencer with G 1/8" 780 779

Silencer with push-in connector 6 mm 902 662
USB interface for serial communication 227 093
