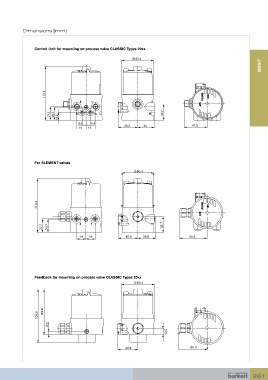

Dimensions [mm]
Control Unit for mounting on process valve CLASSIC Types 20xx
Ø 65.4
8697
110.4
27.7 26.7 16.2 32.7
8.4 8.4 40.2 34 47.3
19 19
For ELEMENT valves
65.4
110.4
27.7 26.7 32.7
19 19 40.6 36.6 56.3
Feedback for mounting on process valve CLASSIC Types 20xx
65.4
105.9 89.9
6.2
12.2
40.2 56.3
