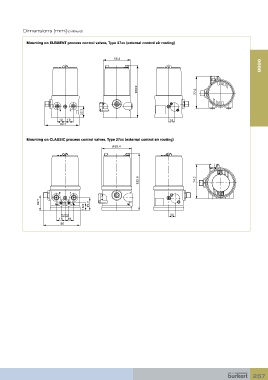

Dimensions [mm] (continued)
Mounting on ELEMENT process control valves, Type 27xx (external control air routing)
65.4
8696
123.9 77.2
27.7
19 19 14
80.7
Mounting on CLASSIC process control valves, Type 27xx (external control air routing)
65.4
123.9 74.2
32.7 27.7
16.2
8.4 8.4 14
19 19
80
