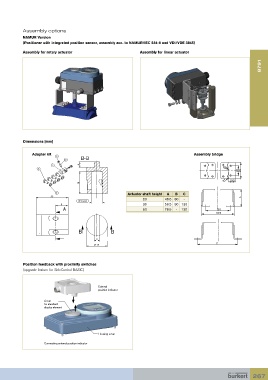

Assembly options
NAMUR Version
(Positioner with integrated position sensor, assembly acc. to NAMUR/IEC 534-6 and VDI/VDE 3845)

Assembly for rotary actuator Assembly for linear actuator
8791

Dimensions [mm]

Adapter kit Assembly bridge
5
2 B-B
1 4
3 R34
30 50
R7 19,5
16
4
4 Actuator shaft height A B C
23
20 46.5 80 - A
Ø 8 +0,1
9 30 56.5 80 130
A 50 76.5 - 130 ( B )
107,6

B B

4
C
Ø 15

Position feedback with proximity switches
(upgrade feature for SideControl BASIC)

External
position indicator

Cover
for standard
display element

Housing cover

Connecting external position indicator
