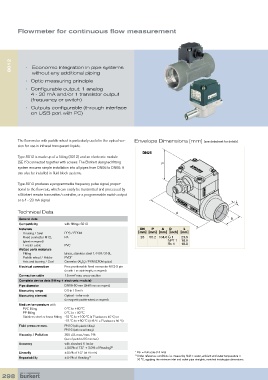

Flowmeter for continuous flow measurement

8012 • Economic integration in pipe systems

without any additional piping
• Optic measuring principle
• Configurable output: 1 analog
4 - 20 mA and/or 1 transistor output
(frequency or switch)
• Outputs configurable (through interface
on USB port with PC)

The flow meter with paddle wheel is particularly useful in the optical ver- Envelope Dimensions [mm] (see datasheet for details)
sion for use in infrared transparent liquids.
DN25
Type 8012 is made up of a fitting (S012) and an electronic module
(SE12) connected together with screws. The Bürkert designed fitting P
system ensures simple installation into all pipes from DN06 to DN65. It
can also be installed in fluid block systems.

Type 8012 produces a programmable frequency pulse signal, propor-
tional to the flow rate, which can easily be transmitted and processed by
a Bürkert remote transmitter/controller, or a programmable switch output
or a 4 - 20 mA signal. L

Technical Data A
General data B
Compatibility with fittings S012
Materials DN P A D L
Housing / Seal PPS / EPDM [mm] [mm] [mm] [inch] [mm]
Fixed connector M12, PA 25 55.2 104.0 G 1 23.5
(gland on request) NPT 1 18.0
1 meter cable PVC Rc 1 18.0
Wetted parts materials
Fitting Brass, stainless steel 1.4404/316L
Paddle wheel / Holder PVDF
Axis and bearing / Seal Ceramics (Al 2 O 3 ) / FKM (EPDM option)
Electrical connection Free positionable fixed connector M12-5 pin
(or with 1 m cable length, on request)
Connection cable 1.5 mm max. cross-section
2
Complete device data (fitting + electronic module)
Pipe diameter DN06-50 mm (DN65 mm on request)
Measuring range 0.3 to 10 m/s
Measuring element Optical - infra-reds
(or magnetic paddle-wheel, on request)
Medium temperature with
PVC fitting 0 °C to +60 °C
PP fitting 0 °C to +80 °C
Stainless steel or brass fitting -15 °C to +100 °C (if T°ambient ≤ 45 °C) or
-15 °C to +90 °C (if 45 °C ≤ T°ambient ≤ 60 °C)
Fluid pressure max. PN10 (with plastic fitting)
PN16 (with metal fitting)
Viscosity / Pollution 300 cSt. max./max. 1%
(size of particles 0.5 mm max.)
Accuracy with standard K-factor
±(0.5% of FS.* + 2.5% of Reading) 1)
Linearity ±0.5% of FS.* (at 10 m/s) * FS. = Full scale (10 m/s)
1) Under reference conditions i.e. measuring fluid = water, ambient and water temperature =
Repeatability ±0.4% of Reading 1)
20 °C, applying the minimum inlet and outlet pipe straights, matched inside pipe dimensions.
