P. 294

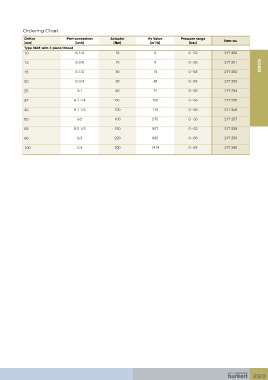

Ordering Chart
Orifice Port connection Actuator Kv Value Pressure range
[mm] [inch] [Nm] [m /h] [bar] Item no.
3
Type 8805 with 3 piece thread
10 G 1/4 15 9 0 - 63 217 250
8805
12 G 3/8 15 9 0 - 63 217 251
15 G 1/2 30 19 0 - 63 217 252
20 G 3/4 30 46 0 - 63 217 253
25 G 1 60 72 0 - 63 217 254
32 G 1 1/4 60 105 0 - 63 217 255
40 G 1 1/2 100 170 0 - 63 217 256
50 G 2 100 275 0 - 63 217 257
63 G 2 1/2 150 507 0 - 63 217 258
80 G 3 220 905 0 - 63 217 259
100 G 4 300 1414 0 - 63 217 260
