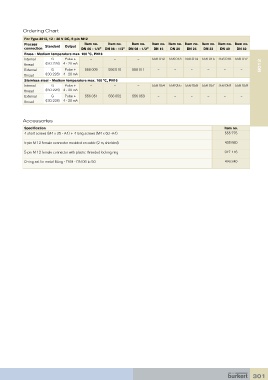

Ordering Chart
For Type 8012, 12 - 36 V DC, 5-pin M12
Process Standard Output Item no. Item no. Item no. Item no. Item no. Item no. Item no. Item no. Item no.
connection DN 06 - 1/4” DN 06 - 1/2” DN 08 - 1/2” DN 15 DN 20 DN 25 DN 32 DN 40 DN 50
Brass - Medium temperature max. 100 °C, PN16
Internal G Pulse + – – – 556 012 556 013 556 014 556 015 556 016 556 017
thread (ISO 228) 4 - 20 mA 8012
External G Pulse + 556 009 556 010 556 011 – – – – – –
thread (ISO 228) 4 - 20 mA
Stainless steel - Medium temperature max. 100 °C, PN16
Internal G Pulse + – – – 556 054 556 055 556 056 556 057 556 058 556 059
thread (ISO 228) 4 - 20 mA
External G Pulse + 556 051 556 052 556 053 – – – – – –
thread (ISO 228) 4 - 20 mA

Accessories
Specification Item no.
4 short screws (M4 x 35 - A4) + 4 long screws (M4 x 60 -A4) 555 775

5-pin M 12 female connector moulded on cable (2 m, shielded) 438 680

5-pin M 12 female connector with plastic threaded locking ring 917 116
O-ring set for metal fitting - FKM - DN 06 to 50 426 340
