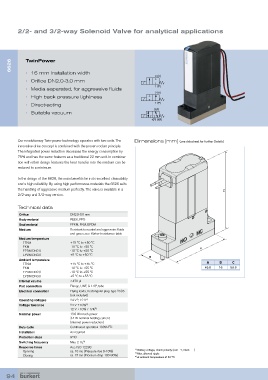

2/2- and 3/2-way Solenoid Valve for analytical applications

6626 TwinPower

• 16 mm Installation width
2 (A)
• Orifice DN2.0-3.0 mm
1 (P)
• Media separated, for aggressive fluids
2 (A)
• High back pressure tightness
• Direct-acting 1 (P)
2(A)
• Suitable vacuum
1(P) 3(R)

Our revolutionary Twin-power technology operates with two coils. The Dimensions [mm] (see datasheet for further Details)
innovative drive concept is combined with the proven rocker principle.
The integrated power reduction decreases the energy consumption by
75% and has the same features as a traditional 22 mm unit. In combina-
tion with other design features the heat transfer into the medium can be
reduced to a minimum.

In the design of the 6626, the main benefits lie in its excellent cleanability
and a high reliability. By using high performance materials the 6626 suits
the handling of aggressive medium perfectly. The valve is available in a C
2/2-way and 3/2-way version.

Technical data
Orifice DN2.0-3.0 mm
Body material PEEK, PPS
Seal material FFKM, FKM, EPDM
Medium Resistant to neutral and aggressive fluids
and gases; see Bürkert resistance table
Medium temperature
FFKM +15 °C to +50 °C
FKM -10 °C to +50 °C A
EPDM DN2.0 -10 °C to +50 °C
EPDM DN3.0 +5 °C to +50 °C B
Ambient temperature
FFKM +15 °C to +55 °C A B C
FKM -10 °C to +55 °C 45.8 16 59.9
EPDM DN2.0 -10 °C to +55 °C
EPDM DN3.0 +5 °C to +55 °C
Internal volume <470 µl
Port connection Flange, UNF, G 1/8”, tube
Electrical connection Flying leads, Rectangular plug Type 2505
(not included)
1)
Operating voltages 24 V , 12 V 1)
Voltage tolerance 24 V ±10%
2)
12 V +10% / -5% 2)
Nominal power 13.6 W inrush power
3.4 W nominal holding current
(internal power reduction)
Duty cycle Continuous operation 100% ED
Installation As required
Protection class IP40
Switching frequency Max. 2 Hz 3)
Response times Acc. ISO 12238
Opening ca. 10 ms (Pressure rise 0-10%) 1) Battery voltage, check polarity (red= +, black= –)
2) Max. allowed ripple
Closing ca. 15 ms (Pressure drop 100-90%) 3) at ambient temperature of 20 °C
