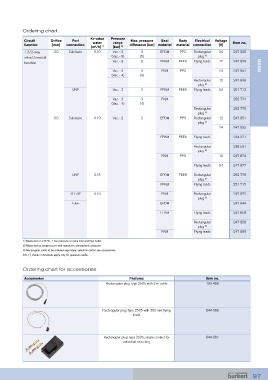

Ordering chart
Kv value Pressure
Circuit Orifice Port water range Max. pressure Seal Body Electrical Voltage Item no.
function [mm] connection difference [bar] material material connection [V]
[m³/h] 1) [bar] 2)
T 3/2-way 2.0 Sub-base 0.10 Vac. - 3 3 EPDM PPS Rectangular 24 247 826
valve Universal (Vac. - 5) (5) plug 3)
Vac. - 3 3 FFKM PEEK Flying leads 12 247 829
function 6626
Vac. - 3 3 FKM PPS 24 247 841
(Vac. - 4) (4)
Rectangular 12 247 838
plug 3)
UNF Vac. - 3 3 FFKM PEEK Flying leads 24 251 713

Vac. - 3 3 FKM 252 774
(Vac. - 4) (4)
Rectangular 252 775
plug 3)
3.0 Sub-base 0.19 Vac. - 2 2 EPDM PPS Rectangular 12 247 851
plug 3)
24 247 853
FFKM PEEK Flying leads 234 371

Rectangular 238 531
plug 3)
FKM PPS 12 247 874
Flying leads 24 247 877

UNF 0.15 EPDM PEEK Rectangular 252 776
plug 3)
FFKM Flying leads 251 715

G 1/8” 0.19 FKM Rectangular 247 872
plug 3)
Tube EPDM 247 844
FFKM Flying leads 247 859

Rectangular 247 858
plug 3)
FKM Flying leads 247 869
1) Measured at +20 ºC, 1 bar pressure at value inlet and free outlet.
2) Measured as overpressure with respect to atmospheric pressure.
3) Rectangular cable to be ordered separately, selection option see accessories.
Info: ( ) Values in brackets apply only for gaseous media.

Ordering chart for accessories
Accessories Features Item no.
Rectangular plug Type 2505 with 3 m cable 133 486

Rectangular plug Type 2505 with 300 mm flying 644 068
leads

Rectangular plug Type 2505, single contact for 644 067
individual mounting
