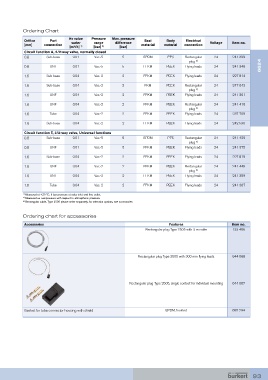

Ordering Chart
Kv value Pressure Max. pressure
Orifice Port water range difference Seal Body Electrical Voltage Item no.
[mm] connection material material connection
[m³/h] 1) [bar] 2) [bar]
Circuit function A, 2/2-way valve, normally closed
0.8 Sub-base 0.01 Vac.-5 5 EPDM PPS Rectangular 24 241 399
plug 3)
0.8 UNF 0.01 Vac.-5 5 FFKM PEEK Flying leads 24 241 346 6624
1.6 Sub-base 0.04 Vac.-2 2 FFKM PEEK Flying leads 24 227 814

1.6 Sub-base 0.04 Vac.-2 2 FKM PEEK Rectangular 24 247 043
plug 3)
1.6 UNF 0.04 Vac.-2 2 FFKM PEEK Flying leads 24 241 361
1.6 UNF 0.04 Vac.-2 2 FFKM PEEK Rectangular 24 241 418
plug 3)
1.6 Tube 0.04 Vac.-2 2 FFKM PEEK Flying leads 24 237 705

1.6 Sub-base 0.04 Vac.-2 2 FFKM PEEK Flying leads 24 242 530
Circuit function T, 3/2-way valve, Universal functions
0.8 Sub-base 0.01 Vac.-5 5 EPDM PPS Rectangular 24 241 429
plug 3)
0.8 UNF 0.01 Vac.-5 5 FFKM PEEK Flying leads 24 241 375

1.6 Sub-base 0.04 Vac.-2 2 FFKM PEEK Flying leads 24 227 815

1.6 UNF 0.04 Vac.-2 2 FFKM PEEK Rectangular 24 241 448
plug 3)
1.6 UNF 0.04 Vac.-2 2 FFKM PEEK Flying leads 24 241 389

1.6 Tube 0.04 Vac.-2 2 FFKM PEEK Flying leads 24 241 387
1) Measured at +20 ºC, 1 bar pressure at value inlet and free outlet.
2) Measured as overpressure with respect to atmospheric pressure.
3) Rectangular cable, Type 2505 please order separately, for selection options, see accessories

Ordering chart for accessories

Accessories Features Item no.
Rectangular plug Type 2505 with 3 m cable 133 486

Rectangular plug Type 2505 with 300 mm flying leads 644 068

Rectangular plug Type 2505, single contact for individual mounting 644 067

Gasket for tube connector housing with shield EPDM, foamed 685 294
