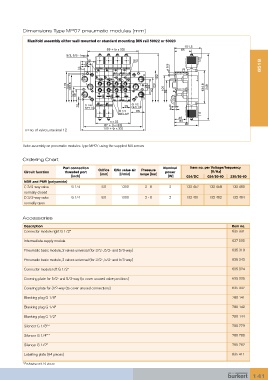

Dimensions Type MP07 pneumatic modules [mm]

Manifold assembly either wall-mounted or standard mounting DIN rail 50022 or 50023
101.5
59 + (n x 33) 65
5/3, 5/3 - Impuls
55 5/2
42
35 6518
15 ø 5.5
3 3
182
115 108 102.5 1 1 24 58 92 120 100 124.8 249
57.5 48 82
5 5
10 G 1/8 33 G 1/2 6 8
NPT 1/2
NPT 1/8
G 1/4 55
NPT 1/4
46
n x 33 52
87 + (n x 33) 90
n=no. of valves, maximal 12 110 + (n x 33)

Valve assembly on pneumatic modules Type MP07 using the supplied M4 screws

Ordering Chart
Port connection Orifice QNn value air Pressure Nominal Item no. per Voltage/frequency
Circuit function threaded port [mm] [l/min] range [bar] power [V/Hz]
[inch] [W] 024/DC 024/50-60 230/50-60
NBR and PUR (polyamide)
C 3/2-way valve G 1/4 8.0 1300 2 - 8 2 132 457 132 458 132 460
normally closed
D 3/2-way valve G 1/4 8.0 1300 2 - 8 2 132 461 132 462 132 464
normally open

Accessories
Description Item no.
Connector module right G 1/2” 635 331
Intermediate supply module 637 505

Pneumatic basic module, 2 valves universal (for 3/2-, 5/2- and 5/3-way) 635 319
Pneumatic basic module, 3 valves universal (for 3/2-, 5/2- and 5/3-way) 635 343

Connector module left G 1/2” 635 324

Covering plate for 5/2- and 5/3-way (to cover unused valve positions) 635 335
Covering plate for 3/2-way (to cover unused connections) 635 337

Blanking plug G 1/8” 780 141
Blanking plug G 1/4” 780 142

Blanking plug G 1/2” 780 144

Silencer G 1/8” * 780 779
Silencer G 1/4” * 780 780

Silencer G 1/2” 780 782

Labelling plate (64 pieces) 635 411
* Packaging unit; 10 pieces
