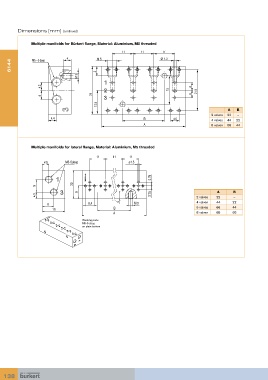

Dimensions [mm] (continued)

Multiple manifolds for Bürkert flange, Material: Aluminium, M5 threaded
11 11 11
4 M 5 Ø 1.2
M5 - 5 deep
6144
M 3 5

4.2 4
15 21.5
25 4
5
12.5
A B
2 valves 22 –
4.4 B 4.5 4 valves 44 22
A 6 valves 66 44

Multiple manifolds for lateral flange, Material: Aluminium, M5 threaded

11 11 11
4.5 M5-5deep ø 1.5

2.75
20
9
9 A B
4.5 2.75 2 valves 22 –
8 6.4 4 M 3 4 valves 44 22
16 B 6 valves 66 44
A 8 valves 88 66
Working ports
M5-5 deep
on plate bottom
