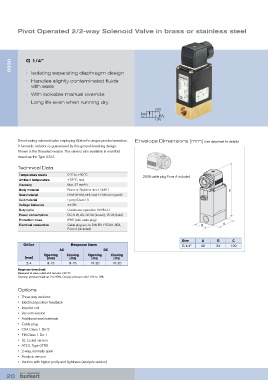

Pivot Operated 2/2-way Solenoid Valve in brass or stainless steel

0330 G 1/4”

• Isolating separating diaphragm design
• Handles slightly contaminated fluids
with ease
• With lockable manual override

• Long life even when running dry
2 (A)

1 (P)

Direct-acting solenoid valve employing Bürkert’s unique pivoted armature. Envelope Dimensions [mm] (see datasheet for details)
A hermetic isolation is guaranteed by this ground-breaking design.
Shown is the threaded version. The valve is also available in manifold
mount as the Type 0331.

Technical Data

Temperature media 0 °C to +90 °C 2508 cable plug Form A included
Ambient temperature +55 ºC, max.
Viscosity Max. 37 mm²/s
Body material Brass or Stainless steel 1.4401
Seal material FKM (FFKM, NBR and EPDM on request)
Coil material Epoxy (Class H)
Voltage tolerance ±10%
Duty cycle Continuous operation 100% ED
Power consumption DC: 8 W, AC: 30 VA (inrush), 15 VA (hold)
Protection class IP65 (with cable plug)
Electrical connection Cable plug acc. to DIN EN 175301-803,
Form A (included)

Size A B C
Orifice Response times G 1/4” 46 34 100
AC DC
Opening Closing Opening Closing
[mm] [mm] [ms] [ms] [ms]
2-4 8-15 8-15 10-20 10-20
Response times [ms]:
Measured at valve outlet at 6 bar and +20 °C
Opening: pressure build-up 0 to 90%, Closing: pressure relief 100 to 10%

Options
• Three way versions
• Electrical position feedback
• Impulse coil
• Vacuum version
• Additional seal materials
• Cable plug
• CSA Class 1 Div 2
• FM Class 1 Div 1
• UL Listed version
• ATEX, Type 0780
• 2-way, normally open
• Analysis version
• Version with higher purity and tightness (analysis version)
