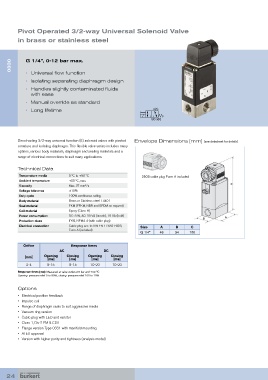

Pivot Operated 3/2-way Universal Solenoid Valve
in brass or stainless steel

0330 G 1/4”, 0-12 bar max.

• Universal flow function
• Isolating separating diaphragm design
• Handles slightly contaminated fluids
with ease

• Manual override as standard
• Long lifetime 2(A)

1(P) 3(R)

Direct-acting 3/2-way universal function (E) solenoid valves with pivoted Envelope Dimensions [mm] (see datasheet for details)
armature and isolating diaphragm. This flexible valve series includes many
options, various body materials, diaphragm and sealing materials and a
range of electrical connections to suit many applications.

Technical Data

Temperature media 0 °C to +90 °C 2508 cable plug Form A included
Ambient temperature +55 ºC, max.
Viscosity Max. 37 mm²/s
Voltage tolerance ±10%
Duty cycle 100% continuous rating
Body material Brass or Stainless steel 1.4401
Seal material FKM (FFKM, NBR and EPDM on request)
Coil material Epoxy (Class H)
Power consumption DC: 8 W, AC: 30 VA (inrush), 15 VA (hold)
Protection class IP65, NEMA 4 (with cable plug)
Electrical connection Cable plug acc. to DIN EN 175301-803, Size A B C
Form A (included)
G 1/4” 46 34 100

Orifice Response times
AC DC
[mm] Opening Closing Opening Closing
[ms] [ms] [ms] [ms]
2-4 8-15 8-15 10-20 10-20
Response times [ms]: Measured at valve outlet at 6 bar and +20 °C
Opening: pressure relief 0 to 90%, closing: pressure relief 100 to 10%

Options
• Electrical position feedback
• Impulse coil
• Range of diaphragm seals to suit aggressive media
• Vacuum ring version
• Cable plug with LED and varistor
• Class 1, Div 2 FM & CSA
• Flange version Type 0331 with manifold mounting
• ATEX approval
• Version with higher purity and tightness (analysis model)
