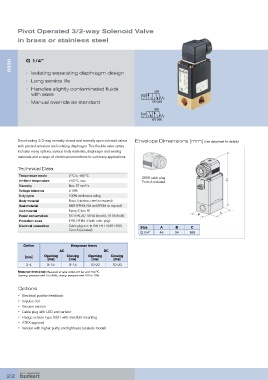

Pivot Operated 3/2-way Solenoid Valve
in brass or stainless steel

0330 G 1/4”

• Isolating separating diaphragm design
• Long service life
• Handles slightly contaminated fluids
with ease 2(A)

• Manual override as standard 1(P) 3(R)
4(B)

1(P) 3(R)

Direct-acting 3/2-way normally closed and normally open solenoid valves Envelope Dimensions [mm] (see datasheet for details)
with pivoted armature and isolating diaphragm. This flexible valve series
includes many options, various body materials, diaphragm and sealing
materials and a range of electrical connections to suit many applications.

Technical Data

Temperature media 0 °C to +80 °C 2508 cable plug
Ambient temperature +55 ºC, max. Form A included
Viscosity Max. 37 mm²/s
Voltage tolerance ±10%
Duty cycle 100% continuous rating
Body material Brass (stainless steel on request)
Seal material NBR (FFKM, KM and EPDM on request)
Coil material Epoxy (Class H)
Power consumption DC: 8 W, AC: 30 VA (inrush), 15 VA (hold)
Protection class IP65, NEMA 4 (with cable plug)
Electrical connection Cable plug acc. to DIN EN 175301-803, Size A B C
Form A (included)
G 1/4” 46 34 100

Orifice Response times
AC DC
[mm] Opening Closing Opening Closing
[ms] [ms] [ms] [ms]
2-4 8-15 8-15 10-20 10-20
Response times [ms]: Measured at valve outlet at 6 bar and +20 °C
Opening: pressure relief 0 to 90%, closing: pressure relief 100 to 10%

Options
• Electrical position feedback
• Impulse coil
• Vacuum version
• Cable plug with LED and varistor
• Flange version Type 0331 with manifold mounting
• ATEX approval
• Version with higher purity and tightness (analysis model)

22
