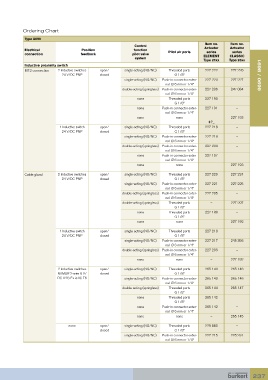

Ordering Chart
Type 8690
Item no. Item no.
Control
Electrical Position function Actuator Actuator
connection feedback pilot valve Pilot air ports series series
system ELEMENT CLASSIC
Type 21xx Type 20xx
Inductive proximity switch
M12 connection 2 Inductive switches open/ single-acting (NO/NC) Threaded ports 227 222 227 226
24 V/DC PNP closed G 1/8” 8690 / 8691
single-acting (NO/NC) Push-in connector exter- 227 223 227 227
nal Ø 6 mm or 1/4”
double-acting (springless) Push-in connector exter- 227 206 247 084
nal Ø 6 mm or 1/4”
none Threaded ports 227 190 –
G 1/8”
none Push-in connector exter- 227 191 –
nal Ø 6 mm or 1/4”
none none _ 227 193
#P_
1 Inductive switch open/ single-acting (NO/NC) Threaded ports 227 218 –
24 V/DC PNP closed G 1/8”
single-acting (NO/NC) Push-in connector exter- 227 219 –
nal Ø 6 mm or 1/4”
double-acting (springless) Push-in connector exter- 227 204 –
nal Ø 6 mm or 1/4”
none Push-in connector exter- 227 187 –
nal Ø 6 mm or 1/4”
none none – 227 193

Cable gland 2 Inductive switches open/ single-acting (NO/NC) Threaded ports 227 220 227 224
24 V/DC PNP closed G 1/8”
single-acting (NO/NC) Push-in connector exter- 227 221 227 225
nal Ø 6 mm or 1/4”
double-acting (springless) Push-in connector exter- 227 205 –
nal Ø 6 mm or 1/4”
double-acting (springless) Threaded ports – 227 207
G 1/8”
none Threaded ports 227 189 –
G 1/8”
none none – 227 192

1 Inductive switch open/ single-acting (NO/NC) Threaded ports 227 216 –
24 V/DC PNP closed G 1/8”
single-acting (NO/NC) Push-in connector exter- 227 217 245 356
nal Ø 6 mm or 1/4”
double-acting (springless) Push-in connector exter- 227 203 –
nal Ø 6 mm or 1/4”
none none – 227 192

2 Inductive switches open/ single-acting (NO/NC) Threaded ports 265 143 265 146
NAMUR 2-wire 8 V/ closed G 1/8”
DC II 2G Ex ia IIC T6 single-acting (NO/NC) Push-in connector exter- 265 143 265 146
nal Ø 6 mm or 1/4”
double-acting (springless) Threaded ports 265 144 265 147
G 1/8”
none Threaded ports 265 142 –
G 1/8”
none Push-in connector exter- 265 142 –
nal Ø 6 mm or 1/4”
none none – 265 145

none open/ single-acting (NO/NC) Threaded ports 225 883 –
closed G 1/8”
single-acting (NO/NC) Push-in connector exter- 227 215 225 231
nal Ø 6 mm or 1/4”
