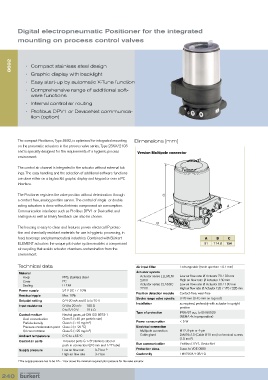

Digital electropneumatic Positioner for the integrated
mounting on process control valves

8692 • Compact stainless steel design

• Graphic display with backlight
• Easy start-up by automatic X-Tune function
• Comprehensive range of additional soft-
ware functions
• Internal control air routing
• Profibus DPV1 or DeviceNet communica-
tion (option)

The compact Positioner, Type 8692, is optimised for integrated mounting Dimensions [mm]
on the pneumatic actuators in the process valve series, Type 23XX/2103
and is specially designed for the requirements of a hygienic process Version Multipole connector
environment.

The control air channel is integrated in the actuator without external tub-
ings. The easy handling and the selection of additional software functions
are done either on a big backlit graphic display and keypad or over a PC
interface.

The Positioner registers the valve position without deterioration through C
a contact-free, analog position sensor. The control of single- or double-
acting actuators is done without intrinsic compressed air consumption. A
Communication interfaces such as Profibus DPV1 or DeviceNet and
analogue as well as binary feedback can also be chosen.
B
The housing is easy to clean and features proven electrical IP protec-
tion and chemically resistant materials for use in hygienic processing, in
food, beverage and pharmaceutical industries. Combined with Bürkert A B C
ELEMENT actuators the unique pilot valve system enables a compressed 91 114.6 156
air recycling that avoids actuator chambers contamination from the
environment.

Technical data Air input filter Exchangeable (mesh aperture ~0.1 mm)
Material Actuator system
Body PPS, stainless steel Actuator series ELEMENT Low air flow rate: Ø Actuator 70 / 90 mm
Cover PC 23XX High air flow rate: Ø Actuator 130 mm
Sealing EPDM Actuator series CLASSIC Low air flow rate: Ø Actuator 80 / 100 mm
Power supply 24 V DC +/-10% 27XX High air flow rate: Ø Actuator 125 / 175 / 225 mm
Residual ripple Max. 10% Position detection module Contact-free, wear-free
Stroke range valve spindle 3-28 mm (3-45 mm on request)
Setpoint setting 0/4-20 mA and 0 to 5/10 V
Installation as required, preferably with actuator in upright
Input resistance 0/4 to 20 mA: 180 Ω position
0 to 5/10 V: 19 k Ω IP65/67 acc. to EN 60529
Control medium Neutral gases, air DIN ISO 8573-1 Type of protection (NEMA 4x in preparation)
Dust concentration Class 5 (<40 µm particle size)
Particle density Class 5 (<10 mg/m ) 3 Power consumption < 5 W
Pressure condensation point Class 3 (<-20 °C) Electrical connection
Oil concentration Class 5 (<25 mg/m ) 3 Multipole connection M12, 8-pin or 4-pin
Ambient temperature 0 °C to +55 °C Cable gland 2xM16x1.5 (Cable Ø10 mm) on terminal screws
2
Control air ports Threaded ports G 1/8” stainless steel or (1.5 mm )
push-in connectors (Ø 6 mm and 1/4” tube) Bus communication Profibus DPV1, DeviceNet
Supply pressure Low air flow rate 0-7 bar Protection class 3 acc. to VDE 0580
1)
High air flow rate 3-7 bar Conformity EMV2004/108/EG
1) The supply pressure has to be 0.5 - 1 bar above the minimum required pilot pressure for the valve actuator.
