P. 243

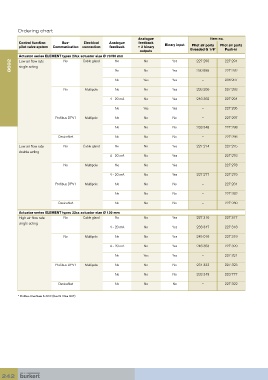

Ordering chart
Analogue Item no.
Control function Bus- Electrical Analogue feedback
pilot valve system Communication connection feedback + 2 binary Binary input Pilot air ports Pilot air ports
outputs threaded G 1/8" Push-in
Actuator series ELEMENT types 23xx actuator size Ø 70/90 mm
8692 Low air flow rate No Cable gland No No Yes 227 290 227 291
single acting
227 292
No
230 898
Yes
No
No Yes Yes – 236 957
No Multipole No No Yes 226 206 227 293
4 - 20 mA No Yes 246 362 227 294
No Yes Yes – 227 295
Profibus DPV1 Multipole No No No – 227 297
No No No 233 348 227 298
DeviceNet No No No – 227 296
Low air flow rate No Cable gland No No Yes 227 274 227 275
double acting
4 - 20 mA No Yes – 227 276
No Multipole No No Yes – 227 278
4 - 20 mA No Yes 227 277 227 279
Profibus DPV1 Multipole No No No – 227 281
No No No – 227 282
DeviceNet No No No – 227 280
Actuator series ELEMENT types 23xx actuator size Ø 130 mm
High air flow rate No Cable gland No No Yes 227 316 227 317
single acting
4 - 20 mA No Yes 233 347 227 318
No Multipole No No Yes 245 016 227 319
4 - 20 mA No Yes 246 363 227 320
No Yes Yes – 227 321
Profibus DPV1 Multipole No No No 231 333 227 323
No No No 233 349 223 777
DeviceNet No No No – 227 322
* Profibus Anschluss 2x M12 (Bus IN / Bus OUT)
