P. 252

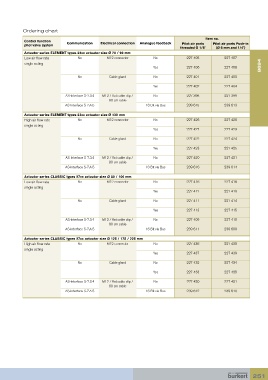

Ordering chart
Item no.
Control function Communication Electrical connection Analogue feedback
pilot valve system Pilot air ports Pilot air ports Push-in
threaded G 1/8" (Ø 6 mm and 1/4")
Actuator series ELEMENT types 23xx actuator size Ø 70 / 90 mm
Low air flow rate No M12 connector No 227 405 227 407
single acting
Yes 227 406 227 408 8694
No Cable gland No 227 401 227 403
Yes 227 402 227 404
AS-Interface S-7.3.4 M12 / flat cable clip / No 227 398 227 399
80 cm cable
AS-Interface S-7.A.5 16 Bit via Bus 239 615 239 613
Actuator series ELEMENT types 23xx actuator size Ø 130 mm
High air flow rate No M12 connector No 227 426 227 428
single acting
Yes 227 427 227 429
No Cable gland No 227 422 227 424
Yes 227 423 227 425
AS-Interface S-7.3.4 M12 / flat cable clip / No 227 420 227 421
80 cm cable
AS-Interface S-7.A.5 16 Bit via Bus 239 616 239 614
Actuator series CLASSIC types 27xx actuator size Ø 80 / 100 mm
Low air flow rate No M12 connector No 227 416 227 418
single acting
Yes 227 417 227 419
No Cable gland No 227 411 227 414
Yes 227 413 227 415
AS-Interface S-7.3.4 M12 / flat cable clip / No 227 409 227 410
80 cm cable
AS-Interface S-7.A.5 16 Bit via Bus 239 611 239 609
Actuator series CLASSIC types 27xx actuator size Ø 125 / 175 / 225 mm
High air flow rate No M12 connector No 227 436 227 438
single acting
Yes 227 437 227 439
No Cable gland No 227 432 227 434
Yes 227 433 227 435
AS-Interface S-7.3.4 M12 / flat cable clip / No 227 430 227 431
80 cm cable
AS-Interface S-7.A.5 16 Bit via Bus 239 612 239 610
251
