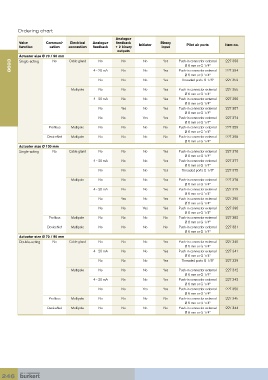

Ordering chart
Analogue
Valve Communi- Electrical Analogue feedback Binary
function cation connection feedback + 2 binary Initiator input Pilot air ports Item no.
outputs
Actuator size Ø 70 / 90 mm
8693 Single-acting No Cable gland No No No Yes Push-in connector external 227 353
Ø 6 mm or G 1/4”
4 - 20 mA
Yes
Push-in connector external
No
No
Ø 6 mm or G 1/4” 227 354
No No No Yes Threaded ports G 1/8” 227 352
Mutlipole No No No Yes Push-in connector external 227 355
Ø 6 mm or G 1/4”
4 - 20 mA No No Yes Push-in connector external 227 356
Ø 6 mm or G 1/4”
No Yes No Yes Push-in connector external 227 357
Ø 6 mm or G 1/4”
No No Yes Yes Push-in connector external 227 374
Ø 6 mm or G 1/4”
Profibus Mutlipole No No No No Push-in connector external 227 359
Ø 6 mm or G 1/4”
DeviceNet Mutlipole No No No No Push-in connector external 227 358
Ø 6 mm or G 1/4”
Actuator size Ø 130 mm
Single-acting No Cable gland No No No Yes Push-in connector external 227 376
Ø 6 mm or G 1/4”
4 - 20 mA No No Yes Push-in connector external 227 377
Ø 6 mm or G 1/4”
No No No Yes Threaded ports G 1/8” 227 375
Mutlipole No No No Yes Push-in connector external 227 378
Ø 6 mm or G 1/4”
4 - 20 mA No No Yes Push-in connector external 227 379
Ø 6 mm or G 1/4”
No Yes No Yes Push-in connector external 227 390
Ø 6 mm or G 1/4”
No No Yes Yes Push-in connector external 227 396
Ø 6 mm or G 1/4”
Profibus Mutlipole No No No No Push-in connector external 227 382
Ø 6 mm or G 1/4”
DeviceNet Mutlipole No No No No Push-in connector external 227 381
Ø 6 mm or G 1/4”
Actuator size Ø 70 / 90 mm
Double-acting No Cable gland No No No Yes Push-in connector external 227 340
Ø 6 mm or G 1/4”
4 - 20 mA No No Yes Push-in connector external 227 341
Ø 6 mm or G 1/4”
No No No Yes Threaded ports G 1/8” 227 339
Mutlipole No No No Yes Push-in connector external 227 342
Ø 6 mm or G 1/4”
4 - 20 mA No No Yes Push-in connector external 227 343
Ø 6 mm or G 1/4”
No No Yes Yes Push-in connector external 227 350
Ø 6 mm or G 1/4”
Profibus Mutlipole No No No No Push-in connector external 227 345
Ø 6 mm or G 1/4”
DeviceNet Mutlipole No No No No Push-in connector external 227 344
Ø 6 mm or G 1/4”

246
