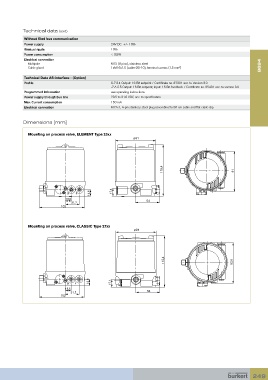

Technical data (cont.)
Without filed bus communication
Power supply 24V DC +/- 10%
Risidual ripple 10%
Power consumption < 3.5W
Electrical connection
Multipole M12 (8 pins), stainless steel 8694
2
Cable gland 1xM16x1.5 (cable Ø5-10), terminal screws (1.5 mm )
Technical Data AS-interface - (Option)
Profile S-7.3.4 Output: 16 Bit setpoint / Certificate no. 87301 acc. to Version 3.0
-7.A S.5 Output: 16 Bit setpoint; Input: 16 Bit feedback / Certificate no. 95401 acc. to version 3.0
Programmed Information see operating instructions
Power supply through bus line 29.5 to 31.6 VDC acc. to specification
Max. Current consumption 150 mA
Electrical connection M12x1, 4-pin stainless steel plug assembled to 80 cm cable and flat cable clip

Dimensions [mm]

Mounting on process valve, ELEMENT Type 23xx
91

115,4 91

14,6 17,1

13,5 54
31,7
102

Mounting on process valve, CLASSIC Type 27xx
91

115,4 92,6

14,6 17,1

13,5
31,7 54
102
