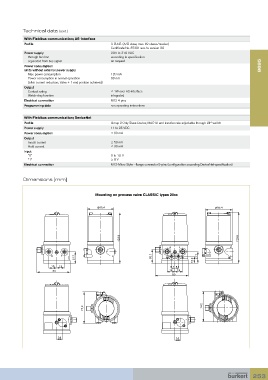

Technical data (cont .)
With Fieldbus communication; AS-Interface
Profile S-B.A.E. (A/B slave, max. 62 slaves/master)
Certificate No. 87301 acc. to version 3.0
Power supply 29.5 to 31.6 VDC
through bus line according to specification
separated from bus signal on request
Power consumption 8695
Units without external power supply
Max. power consumption 120 mA
Power consumption in normal operation 90 mA
(after current reduction; Valve + 1 end position achieved)
Output
Contact rating ≤ 1W over AS-Interface
Watch-dog function integrated
Electrical connection M12 4-pins
Programming data see operating instructions

With Fieldbus communication; DeviceNet
Profile Group 2 Only Slave Device; MAC-ID and transfer rate adjustable through DIP-switch
Power supply 11 to 25 VDC
Power consumption ≤ 80 mA
Output
Inrush current ≤ 50 mA
Hold current ≤ 30 mA
Input
"0" 0 to 1.5 V
"1" ≥ 8 V
Electrical connection M12-Micro Style - flange connector 5-pins (configuration according DeviceNet-specification)

Dimensions [mm]

Mounting on process valve CLASSIC types 20xx

65,4 65.4

123,9 123.9

27,7 32.7 16.2 27.7

19 19 8.4 8.4
80 19 19
80

77,2 74.2

14 14
