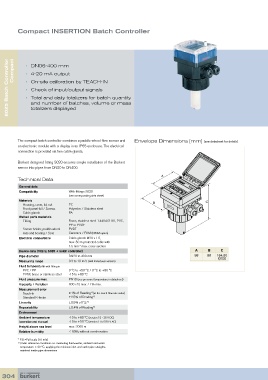

Compact INSERTION Batch Controller

8025 Batch Controller Compact • DN06-400 mm

• 4-20 mA output
• On-site calibration by TEACH-IN
• Check of input/output signals
• Total and daily totalizers for batch quantity
and number of batches, volume or mass
totalizers displayed

The compact batch controller combines a paddle-wheel flow sensor and Envelope Dimensions [mm] (see datasheet for details)
an electronic module with a display in an IP65 enclosure. The electrical
connection is provided via two cable glands.

Bürkert designed fitting S020 ensures simple installation of the Bürkert
sensor into pipes from DN20 to DN400.
A
Technical Data
General data
Compatibility With fittings S020
(see corresponding data sheet)
Materials C
Housing, cover, lid, nut PC B
Front panel foil / Screws Polyester / Stainless steel
Cable glands PA
Wetted parts materials
Fitting Brass, stainless steel 1.4404/316L, PVC,
PP or PVDF
Sensor holder, paddle-wheel PVDF
Axis and bearing / Seal Ceramics / FKM (EPDM option)
Electrical connections Cable glands M20 x 1.5,
max. 50 m protected cable with
1.5 mm ² max. cross-section
Device data (Fitting S020 + batch controller) A B C
Pipe diameter DN20 to 400 mm 88 88 164,50
(203)
Measuring range 0.3 to 10 m/s (Hall transducer version)
Fluid temperature with fitting in
PVC / PP 0 °C to +50 °C / 0 °C to +80 °C
PVDF, brass or stainless steel -15 to +80 °C
Fluid pressure max. PN10 (see pressure/temperature in datasheet)
Viscosity / Pollution 300 cSt. max. / 1% max.
Measurement error
1)
Teach-In ±1% of Reading (at the teach flow rate value)
Standard K-factor ±2.5% of Reading 1)
Linearity ±0.5% of F.S. 1)
Repeatability ±0.4% of Reading 1)
Environment
Ambient temperature -10 to +60 °C (version 12 - 36 V DC)
(operation and storage) -10 to +50 °C (version 115/230 V AC)
Height above sea level max. 2000 m
Relative humidity ≤ 80%, without condensation

* F.S.=Full scale (10 m/s)
1) Under reference conditions i.e. measuring fluid=water, ambient and water
temperature = 20 °C, applying the minimum inlet and outlet pipe straights,
matched inside pipe dimensions
