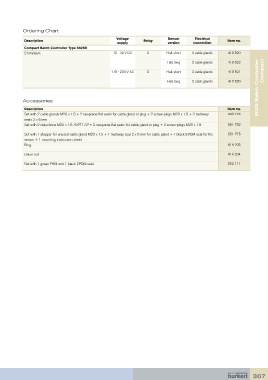

Ordering Chart
Voltage Sensor Electrical
Description Relay Item no.
supply version connection
Compact Batch Controller Type 8025B
2 totalizers 12 - 30 V DC 2 Hall, short 2 cable glands 419 520
8025 Batch Controller
Hall, long 2 cable glands 419 522
115 - 230 V AC 2 Hall, short 2 cable glands 419 521 Compact

Hall, long 2 cable glands 419 529

Accessories

Description Item no.
Set with 2 cable glands M20 x 1.5 + 2 neoprene flat seals for cable gland or plug + 2 screw-plugs M20 x 1.5 + 2 multiway 449 755
seals 2 x 6 mm
Set with 2 reductions M20 x 1.5 /NPT1/2” + 2 neoprene flat seals for cable gland or plug + 2 screw-plugs M20 x 1.5 551 782

Set with 1 stopper for unused cable gland M20 x 1.5 + 1 multiway seal 2 x 6 mm for cable gland + 1 black EPDM seal for the 551 775
sensor + 1 mounting instruction sheet
Ring 619 205
Union nut 619 204

Set with 1 green FKM and 1 black EPDM seal 552 111
