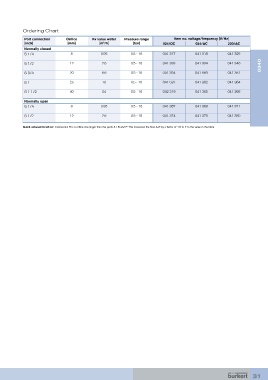

Ordering Chart
Port connection Orifice Kv value water Pressure range Item no. voltage/frequency [V/Hz]
[inch] [mm] [m /h] [bar] 024/DC 024/AC 230/AC
3
Normally closed
G 1/4 8 0.95 0.5 - 16 041 317 041 318 041 329
0340
G 1/2 12 2.6 0.5 - 16 041 333 041 334 041 346
G 3/4 20 6.6 0.5 - 16 041 354 041 665 041 361
G 1 25 10 0.5 - 16 041 537 041 362 041 364
G 1 1/2 40 24 0.5 - 16 042 319 041 365 041 366
Normally open
G 1/4 8 0.95 0.5 - 16 041 367 041 368 041 371
G 1/2 12 2.6 0.5 - 16 041 374 041 375 041 380
Quick exhaust function: Connection R is a orifice size larger than the ports A / B and P. This increases the flow A-R by a factor of 1.5 to 2 to the value in the table.
31
