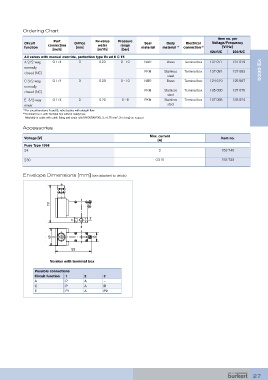

Ordering Chart
Item no. per
Port Kv-value Pressure
Circuit Orifice Seal Body Electrical Voltage/Frequency
function connection [mm] water range material material 1) connection 2) [V/Hz]
[inch] [m /h] [bar]
3
024/UC 230/UC
All valves with manual override, protection type Ex ed II C T5
A 2/2-way, G 1/4 3 0.23 0 - 10 NBR Brass Terminal box 137 077 137 079
normally 0330 Ex
closed (NC) FKM Stainless Terminal box 137 081 137 083
steel
C 3/2-way, G 1/4 3 0.23 0 - 10 NBR Brass Terminal box 124 619 125 567
normally
closed (NC) FKM Stainless Terminal box 135 080 137 075
steel
E 3/2-way G 1/4 3 0.23 0 - 6 FKM Stainless Terminal box 137 085 135 624
mixer steel
1) For circuit functions A and B, valve bodies with straight flow
2) Terminal box = with Terminal box without safety fuse
Moulded-in cable with cable fitting and strain relief (HO5RN-F3G, 3 x 0.75 mm 2 , 3 m long) on request

Accessories
Max. current
Voltage [V] Item no.
[A]
Fuse Type 1058
24 2 153 740

230 0.315 153 733

Envelope Dimensions [mm] (see datasheet for details)

Version with terminal box
Possible connections
Circuit function 1 2 3
A P A –
C P A R
E P1 A P2
