P. 367

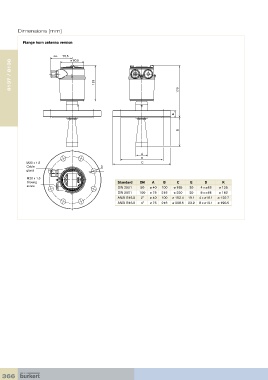

Dimensions [mm]
Flange horn antenna version
ca. ø 80.5
75.5
8137 / 8138 123 179
E
B
A
K
M20 x 1.5 C
Cable D
gland
M20 x 1.5
Closing Standard DN A B C E D K
screw
DIN 2501 50 ø 40 100 ø 165 20 4 x ø18 ø 125
DIN 2501 100 ø 75 216 ø 220 20 8 x ø18 ø 180
ANSI B16.5 2” ø 40 100 ø 152.4 19.1 4 x ø19.1 ø 120.7
ANSI B16.5 4” ø 75 216 ø 228.6 23.9 8 x ø19.1 ø 190.5
