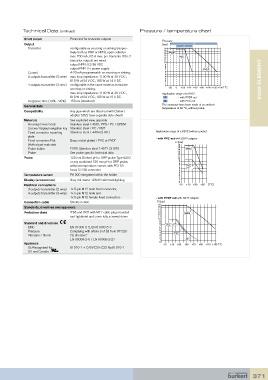

Technical Data (continued) Pressure / temperature chart
Short circuit Protected for transistor outputs
Pressure
Output (bar) B A
Transistor configurable as sourcing or sinking (respec- 16
tively both as PNP or NPN), open collector 15 PVDF
14
max. 700 mA, 0.5 A max. per transistor if the 2 13 PVC
12
transistor outputs are wired 11
10
output NPN: 0.2-36 VDC 9
output PNP: V+ power supply 8 7 PVDF
Current 4-20 mA programmable as sourcing or sinking, 6 5
3 outputs transmitter (2-wire) max. loop impedance: 1100 W at 36 V DC; 4 3
610 W at 24 V DC; 180 W at 14 V DC 2 8202 ELEMENT
4 outputs transmitter (3-wire) configurable in the same mode as transistor: 1 0
sourcing or sinking, -20 0 +20 +40 +60 +80 +100 +120 +140 T °C
max. loop impedance: 1100 W at 36 V DC; Application range of a 8202:
610 W at 24 V DC; 100 W at 12 V DC A : with PVDF nut
Response time (10% - 90%) 150 ms (standard) B : with PVC nut
General data The measures have been made at an ambient
temperature of 60 °C, without probe.
Compatibility Any pipe which are fitted out with Bürkert
adaptor S022 (see separate data sheet)
Materials See exploded view, opposite
Housing/cover/seals Stainless steel 1.4561, PPS / PC / EPDM
Screws/Display/navigation key Stainless steel / PC / PBT
Fixed connector mounting Stainless steel 1.4404 (316L) Application range of a 8202 (without probe)
plate - with PVC nut with S022 adaptor
Fixed connector/Nut Brass nickel plated / PVC or PVDF P (bar)
Wetted part materials 16
Probe holder PVDF, Stainless steel 1.4571 (316Ti) 15 Metal
14
Probe See probe specific technical data 13
12
Probe 120 mm Bürkert pH or ORP probe Type 8203 11
10
or any combined 120 mm pH or ORP probe, 9 8
without temperature sensor, with PG13.5 7 6 PVC +
head, S7/S8 connector 5 PP
Temperature sensor Pt1000 integrated within the holder 4 3 2
Display (accessories) Grey dot matrix 128x64 with backlighting 1
0
Electrical connections -10 +10 +30 +50 (T °C)
3 outputs transmitter (2-wire) 1x 5-pin M12 male fixed connector,
4 outputs transmitter (3-wire) 1x 5-pin M12 male and
1x 5-pin M12 female fixed connectors - with PVDF nut with S022 adaptor
Connection cable Shielded cable P (bar)
16
Standards, directives and approvals 15
14
Protection class IP65 and IP67 with M12 cable plug mounted 13 Metal
12
and tightened and cover fully screwed down 11
10
9
Standard and directives 8 PVC + PP
EMC EN 61000-6-2, EN 61000-6-3 7 6
Pressure Complying with article 3 of §3 from 97/23/ 5 4 PVC
Vibration / Shock CE directive.* 3 2
EN 60068-2-6 / EN 60068-2-27 1 PP
Approvals 0 -10 +10 +30 +50 +70 +90 +110 +130 T °C
UL-Recognized for 61010-1 + CAN/CSA-C22 No.61010-1
US and Canada
