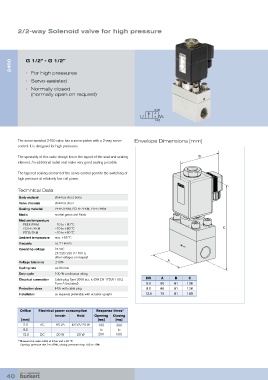

2/2-way Solenoid valve for high pressure

2400 G 1/2” - G 1/2”

• For high pressures
• Servo-assisted
• Normally closed
(normally open on request)

2 (A)

1 (P)

The servo-assisted 2400 valve has a servo-piston with a 2-way servo- Envelope Dimensions [mm]
control. It is designed for high pressures.

The speciality of this valve design lies in the layout of the seat and sealing B
element. An additional radial seal make very good sealing possible.

The tapered sealing element of the servo-control permits the switching of
high pressure at relatively low coil power.

Technical Data
Body material stainless steel, brass
Valve internals stainless steel
Sealing material PEEK/FKM; PCTFE/FKM; PTFE/FKM
Media neutral gases and fluids
Medium temperature
PEEK/FKM –10 to +80 °C
PCTFE/FKM –10 to +80 °C C
PTFE/FKM –10 to +80 °C
Ambient temperature max. +55 °C
Viscosity ca. 21 mm/s
Operating voltage 24/DC
24/220-230 V / 50 Hz
other voltages on request
Voltage tolerance ±10% A
Cycling rate ca. 80/min
Duty cycle 100 % continuous rating
Electrical connection Cable plug Type 2508 acc. to DIN EN 175301-803, DN A B C
Form A (included) 5.0 50 81 126
Protection class IP65 with cable plug 8.0 65 81 126
Installation as required, preferably with actuator upright 12.0 75 81 153

Orifice Electrical power consumption Response times 1)
Inrush Hold Opening Closing
[mm] [ms] [ms]
5.0 AC 85 VA 48 VA/20 W 100 300
8.0 to to
12.0 DC 20 W 20 W 200 500
1) Measured at valve outlet at 6 bar and +20 °C
Opening: pressure rise 0 to 90%, closing: pressure drop 100 to 10%
