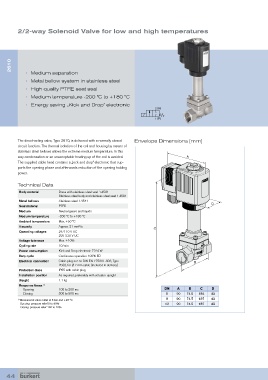

2/2-way Solenoid Valve for low and high temperatures

2610

• Medium separation
• Metal bellow system in stainless steel
• High quality PTFE seat seal
• Medium temperature -200 °C to +180 °C
• Energy saving „Kick and Drop” electronic
2 (A)
1 (P)

The direct-acting valve, Type 2610, is delivered with a normally closed Envelope Dimensions [mm]
circuit function. The thermal isolation of the coil and housing by means of
stainless steel bellows allows the extreme medium temperature. In this
way condensation or an unacceptable heating up of the coil is avoided. A
The supplied cable head contains a „kick and drop” electronic that sup-
ports the opening phase and afterwards reduction of the opening holding
power.

Technical Data

Body material Brass with stainless steel seat 1.4581
Stainless steel body and stainless steel seat 1.4581
Metal bellows Stainless steel 1.4541
Seal material PTFE D
Medium Neutral gases and liquids
Medium temperature -200 °C to +180 °C
Ambient temperature Max. +50 °C
Viscosity Approx. 21 mm /s
2
C
Operating voltages 24/110 V UC
220-230 V UC
Voltage tolerance Max. ±10%
Cycling rate 10/min
Power consumption Kick and Drop electronic 72/4 W
Duty cycle Continuous operation 100% ED
Electrical connection Cable plug acc. to DIN EN 175301-803, Type B
2508, for Ø 7 mm cable (included in delivery)
Protection class IP65 with cable plug
Installation position As required, preferably with actuator upright
Weight 1.1 kg
Response times 1)
Opening 100 to 200 ms DN A B C D
Closing 300 to 500 ms 6 90 74.5 184 43
8 90 74.5 187 43
1) Measured at valve outlet at 6 bar and +20 °C
Opening: pressure relief 0 to 90% 12 90 74.5 187 43
Closing: pressure relief 100 to 10%
