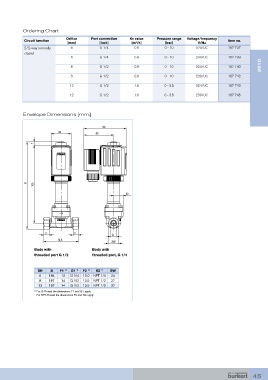

P. 46
Ordering Chart
Orifice Port connection Kv value Pressure range Voltage/frequency
Circuit function Item no.
[mm] [inch] [m³/h] [bar] V/Hz
2/2-way normally 6 G 1/4 0.8 0 - 10 024/UC 167 737
closed
6 G 1/4 0.8 0 - 10 230/UC 167 739
2610
8 G 1/2 0.9 0 - 10 024/UC 167 740
8 G 1/2 0.9 0 - 10 230/UC 167 742
12 G 1/2 1.8 0 - 3.5 024/UC 167 743
12 G 1/2 1.8 0 - 3.5 230/UC 167 745
Envelope Dimensions [mm]
90
43 63
7
B
165
20
F F
G
74,5
SW
Body with Body with
threaded port G 1/2 threaded port, G 1/4
DN B F1 1) G1 1) F2 1) G2 1) SW
6 184 12 G 1/4 10.0 NPT 1/4 24
8 187 14 G 1/2 13.5 NPT 1/2 27
12 187 14 G 1/2 13.5 NPT 1/2 27
1) For G-Thread the dimensions F1 and G1 apply
For NPT-Thread the dimensions F2 and G2 apply
45
