P. 42

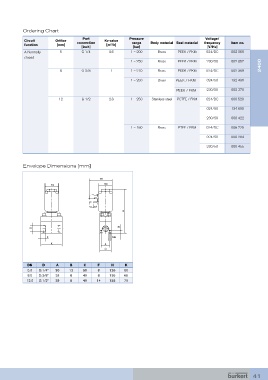

Ordering Chart
Port Pressure Voltage/
Circuit Orifice connection Kv value range Body material Seal material frequency Item no.
function [mm] [m /h]
3
[inch] [bar] [V/Hz]
A Normally 5 G 1/4 0.6 1 – 200 Brass PEEK / FKM 024/DC 002 366
closed
1 – 250 Brass PEEK / FKM 230/50 002 367 2400
8 G 3/8 1 1 – 210 Brass PEEK / FKM 024/DC 002 369
1 – 250 Brass PEEK / FKM 024/50 132 436
PEEK / FKM 230/50 002 370
12 G 1/2 2.6 1 – 250 Stainless steel PCTFE / FKM 024/DC 000 520
024/50 134 690
230/50 000 422
1 – 160 Brass PTFE / FKM 024/DC 006 725
024/50 000 284
230/50 000 455
Envelope Dimensions [mm]
81
49 50
H
B
D
F M6
K A
C
DN D A B C F H K
5.0 G 1/4” 30 12 50 8 126 50
8.0 G 3/8” 29 8 40 8 126 65
12.0 G 1/2” 29 8 40 14 153 75
41
