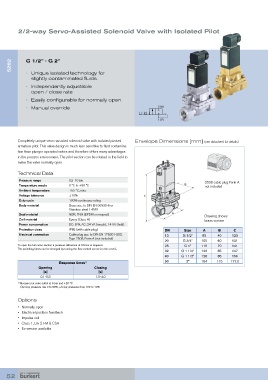

2/2-way Servo-Assisted Solenoid Valve with Isolated Pilot

5282 G 1/2” - G 2”

• Unique isolated technology for
slightly contaminated fluids
• Independently adjustable
open / close rate
• Easily configurable for normally open
• Manual override 2 (A)

1 (P)

Completely unique servo-assisted solenoid valve with isolated pivoted Envelope Dimensions [mm] (see datasheet for details)
armature pilot. This valve design is much less sensitive to fluid contamina-
tion than plunger operated valves and therefore offers many advantages
in the process environment. The pilot section can be rotated in the field to
make the valve normally open.

Technical Data

Pressure range 0.2-10 bar 2508 cable plug Form A
Temperature media 0 °C to +90 °C not included
Ambient temperature +55 ºC, max.
Voltage tolerance ±10%
Duty cycle 100% continuous rating
Body material Brass acc. to DIN EN 50930-6 or
Stainless steel 1.4581
Seal material NBR, FKM (EPDM on request) Drawing shows
Coil material Epoxy (Class H) brass version
Power consumption DC: 8 W, AC: 24 VA (inrush), 14 VA (hold)
Protection class IP65 (with cable plug) DN Size A B C
Electrical connection Cable plug acc. to DIN EN 175301-803, 13 G 1/2” 65 40 123
Type 2508, Form A (not included)
20 G 3/4” 100 60 131
To open the full cross-section a pressure difference of 0.5 bar is required. 25 G 1” 115 70 141
The switching times can be changed by turning the flow control screw (on the cover).
32 G 1 1/4” 126 85 147
40 G 1 1/2” 126 85 156
50 2” 164 115 177.5
Response times 1)
Opening Closing
[s] [s]
0.1-0.8 1.0-4.0
1) Measured at valve outlet at 6 bar and +20 °C
Opening: pressure rise 0 to 90%, closing: pressure drop 100 to 10%

Options
• Normally open
• Electrical position feedback
• Impulse coil
• Class 1, Div 2 FM & CSA
• Ex-version available
