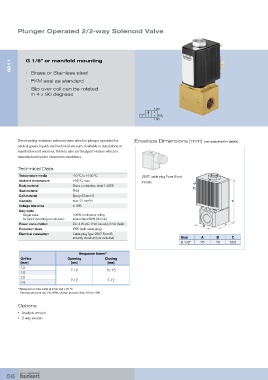

Plunger Operated 2/2-way Solenoid Valve

6011 G 1/8” or manifold mounting

• Brass or Stainless steel
• FKM seal as standard
• Slip over coil can be rotated
in 4 x 90 degrees

2 (A)
1 (P)

Direct-acting miniature solenoid valve which is plunger operated for Envelope Dimensions [mm] (see datasheet for details)
neutral gases, liquids and technical vacuum. Available in standalone or
manifold mount versions, there is also an “analysis” version which is
manufactured under cleanroom conditions.

Technical Data

Temperature media -10 ºC to +100 ºC 2507 cable plug Form B not
Ambient temperature +55 ºC, max. include
Body material Brass or stainless steel 1.4305
Seal material FKM
Coil material Epoxy (Class H)
Viscosity max. 21 mm²/s
Voltage tolerance ±10%
Duty cycle
Single valve 100% continuous rating
for block mounting on sub-base Intermittent 60% (30 min)
Power consumption DC: 4 W, AC: 9 VA (inrush), 6 VA (hold)
Protection class IP65 (with cable plug)
Electrical connection Cable plug Type 2507 Form B
Industry standard (not included) Size A B C
G 1/8” 25 20 50.5

Response times 1)
Orifice Opening Closing
[mm] [ms] [ms]
1.2
7-10 10-15
1.6
2.0
7-12 7-12
2.4
1) Measured at valve outlet at 6 bar and +20 °C
Opening: pressure rise 0 to 90%, closing: pressure drop 100 to 10%

Options
• Analysis version
• 2-way version
