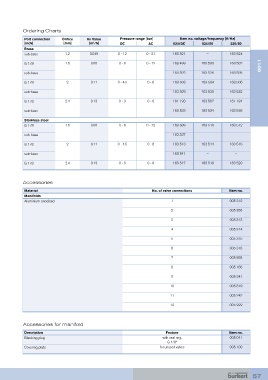

Ordering Charts
Port connection Orifice Kv Value Pressure range [bar] Item no. voltage/frequency [V/Hz]
[inch] [mm] [m /h] DC AC 024/DC 024/50 230/50
3
Brass
sub-base 1.2 0.045 0 - 12 0 - 21 163 521 – 163 524
6011
G 1/8 1.6 0.06 0 - 6 0 - 12 163 499 163 500 163 502

sub-base 163 525 163 526 163 528
G 1/8 2 0.11 0 - 4.5 0 - 8 163 503 163 504 163 506

sub-base 163 529 163 530 163 532

G 1/8 2.4 0.13 0 - 3 0 - 6 161 193 163 507 161 194
sub-base 163 533 163 534 163 536

Stainless steel
G 1/8 1.6 0.06 0 - 6 0 - 12 163 509 163 510 163 512

sub-base 163 537 – –
G 1/8 2 0.11 0 - 4.5 0 - 8 163 513 163 514 163 516

sub-base 163 541 – –

G 1/8 2.4 0.13 0 - 3 0 - 6 163 517 163 518 163 520

Accessories
Material No. of valve connections Item no.
Manifolds
Aluminium anodised 1 005 312

2 005 355
3 005 313

4 005 314

5 005 315
6 005 316

7 005 893
8 005 166

9 005 241

10 005 819
11 005 242

12 005 222

Accessories for manifold

Description Feature Item no.
Blanking plug with seal ring, 005 041
G 1/8”
Covering plate for unused valves 005 100
