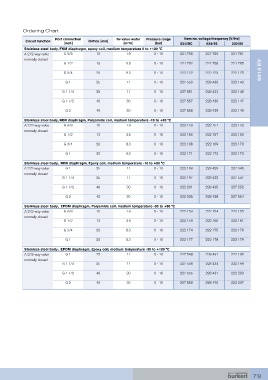

Ordering Chart
Port connection Kv value water Pressure range Item no. voltage/frequency [V/Hz]
Circuit function Orifice [mm]
[inch] [m /h] [bar] 024/DC 024/50 230/50
3
Stainless steel body, FKM diaphragm, epoxy coil, medium temperature 0 to +120 °C
A 2/2-way valve G 3/8 10 1.9 0 - 10 221 758 221 759 221 761
normally closed
6213 EV
G 1/2 13 3.6 0 - 10 221 762 221 763 221 765
G 3/4 20 8.3 0 - 10 222 122 222 123 222 125
G 1 25 11 0 - 10 227 550 228 430 222 143

G 1 1/4 25 11 0 - 10 227 551 228 433 222 145

G 1 1/2 40 30 0 - 10 227 557 228 436 222 147
G 2 40 30 0 - 10 227 558 228 439 222 149

Stainless steel body, NBR diaphragm, Polyamide coil, medium temperature -10 to +80 °C
A 2/2-way valve G 3/8 10 1.9 0 - 10 222 150 222 151 222 152
normally closed
G 1/2 13 3.6 0 - 10 222 156 222 157 222 158
G 3/4 20 8.3 0 - 10 222 168 222 169 222 170

G 1 20 8.3 0 - 10 222 171 222 172 222 173

Stainless steel body, NBR diaphragm, Epoxy coil, medium temperature -10 to +80 °C
A 2/2-way valve G 1 25 11 0 - 10 222 193 228 429 227 546
normally closed
G 1 1/4 25 11 0 - 10 222 197 228 432 227 547
G 1 1/2 40 30 0 - 10 222 201 228 435 227 552

G 2 40 30 0 - 10 222 205 228 438 227 554
Stainless steel body, EPDM diaphragm, Polyamide coil, medium temperature -30 to +90 °C
A 2/2-way valve G 3/8 10 1.9 0 - 10 222 153 222 154 222 155
normally closed
G 1/2 13 3.6 0 - 10 222 159 222 160 222 161
G 3/4 20 8.3 0 - 10 222 174 222 175 222 176

G 1 20 8.3 0 - 10 222 177 222 178 222 179
Stainless steel body, EPDM diaphragm, Epoxy coil, medium temperature -30 to +100 °C
A 2/2-way valve G 1 25 11 0 - 10 227 548 228 431 222 195
normally closed
G 1 1/4 25 11 0 - 10 227 549 228 434 222 199

G 1 1/2 40 30 0 - 10 227 555 228 437 222 203

G 2 40 30 0 - 10 227 556 228 440 222 207

79
