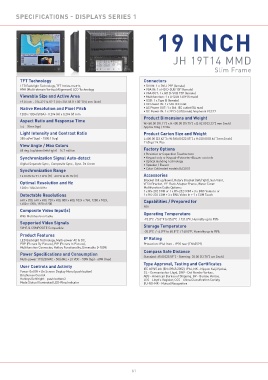

specifications - DispLays seRies 1
19 incH
JH 19T14 MMD
Slim Frame
tft technology connectors
LED Backlight Technology, TFT Active-matrix, • DVI IN: 1 x DVI-I 29P (female)
MVA (Multi-domain Vertical Alignment) LCD Technology • VGA IN: 1 x HD D-SUB 15P (female)
• VGA OUT: 1 x HD D-SUB 15P (female)
Viewable size and active area • Multifunction: 1 x D-SUB 160P (female)
19.0 inch - 376.32 [14.82’’] (H) x 301.05 [11.85’’] (V) mm [inch] • USB: 1 x Type B (female)
• AC Power IN: 1 x Std. IEC inlet
native Resolution and pixel pitch • AC Power OUT: 1 x Std. IEC outlet (5A max)
1280 x 1024 (SXGA) - 0.294 (H) x 0.294 (V) mm • DC Power IN: 1 x 2P D-SUB (male) Amphenol FCC17
aspect Ratio and Response time product Dimensions and Weight
W:460.00 [18.11’’] x H:400.00 [15.75’’] x D:82.00 [3.23’’] mm [inch]
5:4 - 20ms (typ) Approx 10kg / 22lbs
Light intensity and contrast Ratio product carton size and Weight
350 cd/m² (typ) - 1500:1 (typ) L:600.00 [23.62’’] x W:560.00 [22.05’’] x H:220.00 [8.66’’] mm [inch]
11.0kg / 24.2lbs
View angle / Max colors
85 deg. (up/down/left/right) - 16.7 million factory options
• Resistive or Capacitive Touchscreen
synchronization signal auto-detect • Keypad only or Keypad+Potmeter+Buzzer controls
Digital Separate Sync., Composite Sync., Sync. On Green • Optical Bonding Technology
• Speaker / Buzzer
synchronization Range • Color Calibrated models (ECDIS)
15.0 kHz to 91.1 kHz (H) - 60 Hz to 85 Hz (V) accessories
Bracket (tilt up/down), Rotary Bracket (left/right), Sun Visor,
optimal Resolution and Hz VESA Bracket, 19’’ Rack Adapter Frame, Water Cover.
1280 x 1024 @ 60 Hz Multifunction Cable Options:
1 x RS-232 COM or 1 x RS-232 COM + 3 x BNC Video In or
Detectable Resolutions 1 x RS-232 COM + 3 x BNC Video In + 1 x COM Touch
640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, capabilities / prepared for
1600 x 1200, 1920 x1200
N/A
composite Video input(s)
With Multifunction Cable operating temperature
-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
supported Video signals
SVHS & COMPOSITE Compatible storage temperature
-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
product features
LED Backlight Technology, Multi-power AC & DC, ip Rating
PBP (Picture By Picture), PIP (Picture In Picture), Protection: IP66 front - IP20 rear (EN60529)
Multifunction Connector, Hotkey Functionality, Dimmable 0-100%
power specifi cations and consumption compass safe Distance
Multi-power 115/230VAC - 50/60Hz + 24 VDC - 50W (typ) - 60W (max) Standard: 65.00 [25.59’’] - Steering: 35.00 [13.78’’] cm [inch]
type approval, testing and certifi cates
User controls and activity IEC 60945 4th (EN 60945:2002), IP66, NK - Nippon Kaiji Kyokai,
Power On/Off + On Screen Display Menu (push button) GL - Germanischer Lloyd, DNV - Det Norske Veritas,
Brightness Control ABS - American Bureau of Shipping, BV - Bureau Veritas,
Hotkeys (left/right - push buttons) LRS - Lloyd’s Register, CCS - China Classifi cation Society,
Mode Status Illuminated LED-Ring Indicator EU-RO-MR - Mutual Recognition
