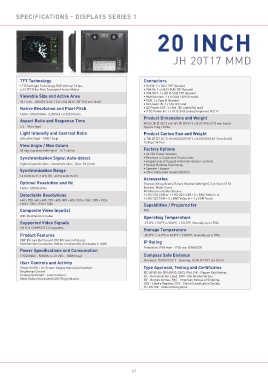

specifications - DispLays seRies 1
20 incH
JH 20T17 MMD
tft technology connectors
LED Backlight Technology, RGB Vertical Stripe, • DVI IN: 1 x DVI-I 29P (female)
a-Si TFT (Thin Film Transistor) Active Matrix • VGA IN: 1 x HD D-SUB 15P (female)
• VGA OUT: 1 x HD D-SUB 15P (female)
Viewable size and active area • Multifunction: 1 x D-SUB 160P (female)
20.1 inch - 408.00 [16.06’’] (H) x 306.00 [12.05’’] (V) mm [inch] • USB: 1 x Type B (female)
• AC Power IN: 1 x Std. IEC inlet
native Resolution and pixel pitch • AC Power OUT: 1 x Std. IEC outlet (5A max)
1600 x 1200 (UXGA) - 0.255 (H) x 0.255 (V) mm • If DC Power IN: 1 x 2P D-SUB (male) Amphenol FCC17
aspect Ratio and Response time product Dimensions and Weight
W:534.00 [21.02’’] x H:481.00 [18.94’’] x D:87.00 [3.43’’] mm [inch]
4:3 - 20ms (typ) Approx 15kg / 33lbs
Light intensity and contrast Ratio product carton size and Weight
260 cd/m² (typ) - 1000:1 (typ) L:700.00 [27.56’’] x W:660.00 [25.98’’] x H:220.00 [8.66’’] mm [inch]
15.5kg / 34.1lbs
View angle / Max colors
85 deg. (up/down/left/right) - 16.7 million factory options
• 24 VDC Power Solution
synchronization signal auto-detect • Resistive or Capacitive Touchscreen
Digital Separate Sync., Composite Sync., Sync. On Green • Keypad only or Keypad+Potmeter+Buzzer controls
• Optical Bonding Technology
synchronization Range • Speaker / Buzzer
• Color Calibrated models (ECDIS)
15.0 kHz to 91.1 kHz (H) - 60 Hz to 85 Hz (V) accessories
optimal Resolution and Hz Bracket (tilt up/down), Rotary Bracket (left/right), Sun Visor, VESA
1600 x 1200 @ 60 Hz Bracket, Water Cover.
Multifunction Cable Options:
Detectable Resolutions 1 x RS-232 COM or 1 x RS-232 COM + 3 x BNC Video In or
640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1 x RS-232 COM + 3 x BNC Video In + 1 x COM Touch
1600 x 1200, 1920 x 1200 capabilities / prepared for
composite Video input(s) N/A
With Multifunction Cable operating temperature
supported Video signals -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
SVHS & COMPOSITE Compatible storage temperature
product features -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
PBP (Picture By Picture), PIP (Picture In Picture), ip Rating
Multifunction Connector, Hotkey Functionality, Dimmable 0-100%
Protection: IP66 front - IP20 rear (EN60529)
power specifi cations and consumption
115/230VAC - 50/60Hz or 24 VDC - 100W (max) compass safe Distance
Standard: 75.00 [29.53’’] - Steering: 35.00 [13.78’’] cm [inch]
User controls and activity
Power On/Off + On Screen Display Menu (push button) type approval, testing and certifi cates
Brightness Control IEC 60945 4th (EN 60945:2002), IP66, NK - Nippon Kaiji Kyokai,
Hotkeys (left/right - push buttons) GL - Germanischer Lloyd, DNV - Det Norske Veritas,
Mode Status Illuminated LED-Ring Indicator BV - Bureau Veritas, ABS - American Bureau of Shipping,
LRS - Lloyd’s Register, CCS - China Classifi cation Society,
EU-RO-MR - Mutual Recognition
