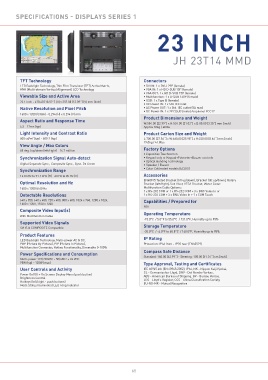

specifications - DispLays seRies 1

23 incH

JH 23T14 MMD

tft technology connectors
LED Backlight Technology, Thin Film Transistor (TFT) Active Matrix, • DVI IN: 1 x DVI-I 29P (female)
MVA (Multi-domain Vertical Alignment) LCD Technology • VGA IN: 1 x HD D-SUB 15P (female)
• VGA OUT: 1 x HD D-SUB 15P (female)
Viewable size and active area • Multifunction: 1 x D-SUB 160P (female)
23.1 inch - 470.40 [18.52’’] (H) x 352.80 [13.89’’] (V) mm [inch] • USB: 1 x Type B (female)
• AC Power IN: 1 x Std. IEC inlet
native Resolution and pixel pitch • AC Power OUT: 1 x Std. IEC outlet (5A max)
1600 x 1200 (UXGA) - 0.294 (H) x 0.294 (V) mm • DC Power IN: 1 x 2P DSUB (male) Amphenol FCC17
aspect Ratio and Response time product Dimensions and Weight
W:584.00 [22.99’’] x H:534.00 [21.02’’] x D:85.00 [3.35’’] mm [inch]
4:3 - 12ms (typ) Approx 18kg / 40lbs
Light intensity and contrast Ratio product carton size and Weight
400 cd/m² (typ) - 600:1 (typ) L:700.00 [27.56’’] x W:660.00 [25.98’’] x H:220.00 [8.66’’] mm [inch]
19.0kg / 41.8lbs
View angle / Max colors
85 deg. (up/down/left/right) - 16.7 million factory options
• Capacitive Touchscreen
synchronization signal auto-detect • Keypad only or Keypad+Potmeter+Buzzer controls
Digital Separate Sync., Composite Sync., Sync. On Green • Optical Bonding Technology
• Speaker / Buzzer
synchronization Range • Color Calibrated models (ECDIS)
15.0 kHz to 91.1 kHz (H) - 60 Hz to 85 Hz (V) accessories
EN60945 Tested Bracket (tilt up/down), Bracket (tilt up/down), Rotary
optimal Resolution and Hz Bracket (left/right), Sun Visor, VESA Bracket, Water Cover.
1600 x 1200 @ 60 Hz Multifunction Cable Options:
1 x RS-232 COM or 1 x RS-232 COM + 3 x BNC Video In or
Detectable Resolutions 1 x RS-232 COM + 3 x BNC Video In + 1 x COM Touch
640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, capabilities / prepared for
1600 x 1200, 1920 x 1200
N/A
composite Video input(s)
With Multifunction Cable operating temperature
-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
supported Video signals
SVHS & COMPOSITE Compatible storage temperature
-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
product features
LED Backlight Technology, Multi-power AC & DC, ip Rating
PBP (Picture By Picture), PIP (Picture In Picture), Protection: IP66 front - IP20 rear (EN60529)
Multifunction Connector, Hotkey Functionality, Dimmable 0-100%
power specifi cations and consumption compass safe Distance
Multi-power 115/230VAC - 50/60Hz + 24 VDC Standard: 160.00 [62.99’’] - Steering: 105.00 [41.34’’] cm [inch]
95W (typ) - 125W (max) type approval, testing and certifi cates
User controls and activity IEC 60945 4th (EN 60945:2002), IP66, NK - Nippon Kaiji Kyokai,
Power On/Off + On Screen Display Menu (push button) GL - Germanischer Lloyd, DNV - Det Norske Veritas,
ABS - American Bureau of Shipping, BV - Bureau Veritas,
Brightness Control LRS - Lloyd’s Register, CCS - China Classifi cation Society,
Hotkeys (left/right - push buttons) EU-RO-MR - Mutual Recognition
Mode Status Illuminated LED-Ring Indicator
