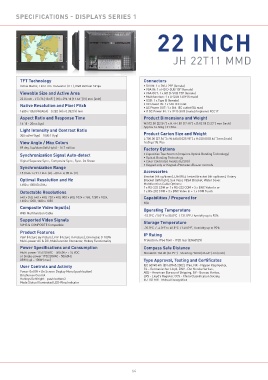

specifications - DispLays seRies 1

22 incH

JH 22T11 MMD

tft technology connectors
Active Matrix, Thin Film Transistor (TFT), RGB Vertical Stripe • DVI IN: 1 x DVI-I 29P (female)
• VGA IN: 1 x HD D-SUB 15P (female)
Viewable size and active area • VGA OUT: 1 x HD D-SUB 15P (female)
22.0 inch - 473.76 [18.65’’] (H) x 296.10 [11.66’’] (V) mm [inch] • Multifunction: 1 x D-SUB 160P (female)
• USB: 1 x Type B (female)
native Resolution and pixel pitch • AC Power IN: 1 x Std. IEC inlet
• AC Power OUT: 1 x Std. IEC outlet (5A max)
1680 x 1050 (WSXGA) - 0.282 (H) x 0.282 (V) mm • If DC Power IN: 1 x 2P D-SUB (male) Amphenol FCC17
aspect Ratio and Response time product Dimensions and Weight
16:10 - 20ms (typ) W:572.50 [22.54’’] x H.444.00 [17.48’’] x D:82.00 [3.23’’] mm [inch]
Approx 14.50kg / 31.9lbs
Light intensity and contrast Ratio
300 cd/m² (typ) - 1000:1 (typ) product carton size and Weight
L:700.00 [27.56’’] x W:660.00 [25.98’’] x H:220.00 [8.66’’] mm [inch]
View angle / Max colors 16.0kg / 35.2lbs
89 deg. (up/down/left/right) - 16.7 million factory options
synchronization signal auto-detect • Capacitive Touchscreen (requires Optical Bonding Technology)
• Optical Bonding Technology
Digital Separate Sync., Composite Sync., Sync. On Green • Color Calibrated models (ECDIS)
synchronization Range • Keypad only or Keypad+Potmeter+Buzzer controls
15.0 kHz to 91.1 kHz (H) - 60 Hz to 85 Hz (V) accessories
Bracket (tilt up/down), EN60945 Tested Bracket (tilt up/down), Rotary
optimal Resolution and Hz Bracket (left/right), Sun Visor, VESA Bracket, Water Cover.
1680 x 1050 @ 60 Hz Multifunction Cable Options:
1 x RS-232 COM or 1 x RS-232 COM + 3 x BNC Video In or
Detectable Resolutions 1 x RS-232 COM + 3 x BNC Video In + 1 x COM Touch
640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, capabilities / prepared for
1600 x 1200, 1680 x 1050
N/A
composite Video input(s) operating temperature
With Multifunction Cable
-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
supported Video signals storage temperature
SVHS & COMPOSITE Compatible
-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
product features ip Rating
PBP (Picture By Picture), PIP (Picture In Picture), Dimmable 0-100%
Multi-power AC & DC, Multifunction Connector, Hotkey Functionality Protection: IP66 front - IP20 rear (EN60529)
power specifi cations and consumption compass safe Distance
Multi-power 115/230VAC - 50/60Hz + 24 VDC Standard: 160.00 [62.99’’] - Steering: 90.00 [35.43’’] cm [inch]
or Single-power 115/230VAC - 50/60Hz
85W (typ) - 100W (max) type approval, testing and certifi cates
User controls and activity IEC 60945 4th (EN 60945:2002), IP66, NK - Nippon Kaiji Kyokai,
GL - Germanischer Lloyd, DNV - Det Norske Veritas,
Power On/Off + On Screen Display Menu (push button) ABS - American Bureau of Shipping, BV - Bureau Veritas,
Brightness Control LRS - Lloyd’s Register, CCS - China Classifi cation Society,
Hotkeys (left/right - push buttons) EU-RO-MR - Mutual Recognition
Mode Status Illuminated LED-Ring Indicator
