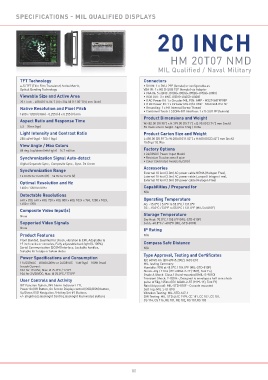

specifications - MiL QUaLifieD DispLays

20 incH

HM 20T07 NMD

MIL Qualified / Naval Military

tft technology connectors
a-Si TFT (Thin Film Transistor) Active Matrix, • DVI IN: 1 x DVI-I 29P (female) or confi gurable as
Optical Bonding Technology VGA IN: 1 x HD D-SUB 15P (female) via Adapter
• VGA IN: 5 x BNC J01(R)+J03(G)+J05(B)+J07(H)+J08(V)
Viewable size and active area • RGB OUT: 3 x BNC J02(R)+J04(G)+J06(B)
20.1 inch - 408.00 [16.06’’] (H) x 306.00 [12.05’’] (V) mm [inch] • If AC Power IN: 1 x Circular MIL P/N: AMP - MS27468T9F98P
• If DC Power IN: 1 x Circular MIL P/N: AMP - MS27468T15F5P
native Resolution and pixel pitch • Grounding: 1 x M4 Internal Screw Thread
1600 x 1200 (UXGA) - 0.255 (H) x 0.255 (V) mm • Combined Touch / SCOM+BIT Interface: 1 x D-SUB 9P (female)
aspect Ratio and Response time product Dimensions and Weight
W:482.00 [18.98’’] x H:399.00 [15.71’’] x D:95.00 [3.74’’] mm [inch]
4:3 - 20ms (typ) 9U Rack size in height. Approx 12kg / 26lbs
Light intensity and contrast Ratio product carton size and Weight
250 cd/m² (typ) - 500:1 (typ) L:650.00 [25.59’’] x W:280.00 [11.02’’] x H:600.00 [23.62’’] mm [inch]
15.0kg / 33.0lbs
View angle / Max colors
88 deg. (up/down/left/right) - 16.7 million factory options
• 24/28VDC Power Input Model
synchronization signal auto-detect • Resistive Touchscreen 8 wire
Digital Separate Sync., Composite Sync., Sync. On Green • Color Calibrated models (ECDIS)
synchronization Range accessories
External 10 foot (3.0m) AC power cable NEMA (Halogen Free),
15.0 kHz to 75 kHz (H) - 56 Hz to 75 Hz (V) External 10 foot (3.0m) AC power cable Europe (Halogen Free),
External 10 foot (3.0m) DC power cable (Halogen Free)
optimal Resolution and Hz
1600 x 1200 @ 60 Hz capabilities / prepared for
N/A
Detectable Resolutions
640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, operating temperature
1600 x 1200 AC: -15.0°C / 5.0°F to 55.0°C / 131.0°F
DC: -15.0°C / 5.0°F to 55.0°C / 131.0°F (Mil-Std 810F)
composite Video input(s)
None storage temperature
Dry Heat: 70.0°C / 158.0°F (MIL-STD-810F)
supported Video signals Cold: -40.0°C / -40.0°F (MIL-STD-810F)
None ip Rating
product features N/A
Front Bonded, Qualifi ed for shock, vibration & EMI, Adaptable to
19 inch racks or consoles, Fully adjustable backlight (0-100%), compass safe Distance
Serial Communication (SCOM) Interface, Lockable handles, N/A
Suitable for bridge or below decks
power specifi cations and consumption type approval, testing and certifi cates
115/230VAC - 50/60/400Hz or 24/28VDC - 75W (typ) - 100W (max) IEC 60945 4th (EN 60945:2002), IACS E10
MIL Testing Summary:
Inrush Current: Humidity: 95% at 40.0°C / 104.0°F (MIL-STD-810F)
10A for 115VAC, Max. @ 25.0°C / 77.0°F Shock: 60g / 11ms (IEC 60068-2-27 (1987), Test Ea)
10A for 24/28VDC, Max. @ 25.0°C / 77.0°F Grade A Shock: Class 1 (hard-mounted) (MIL-S-901D)
User controls and activity Transient Shock: 2-280 Hz, Designed to envelope a half sine shock
pulse of 50g / 35ms (IEC 60068-2-57 (1999-11), Test Ff)
BIT Function Button, INV Alarm Indicator LED, Rain (drip proof): MIL-STD-810F - Console mounted
Power On/Off Button, On Screen Display control (OSD/OSM) button, Salt Fog: MIL-STD-810F
Up/Down OSD Navigation / Hotkey Set #1 Buttons, Vibration Testing: MIL-STD-167-1
+/- Brightness Backlight Control, Backlight Illuminated Buttons EMI Testing: MIL-STD 461E 1999, CE 101, CE 102, CS 101,
CS 114, CS 116, RE 101, RE 102, RS 101,RS 103
