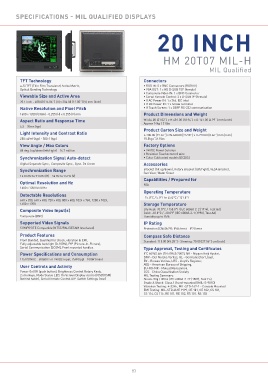

specifications - MiL QUaLifieD DispLays

20 incH

HM 20T07 MIL-H

MIL Qualified

tft technology connectors
a-Si TFT (Thin Film Transistor) Active Matrix, • RGB IN: 5 x BNC Connectors (RGBHV)
Optical Bonding Technology • VGA OUT: 1 x HD D-SUB 15P (female)
• Composite Video IN: 1 x BNC Connector
Viewable size and active area • Serial Remote Control: 2 x D-SUB 9P (female)
20.1 inch - 408.00 [16.06’’] (H) x 306.00 [12.05’’] (V) mm [inch] • If AC Power IN: 1 x Std. IEC inlet
• If DC Power IN: 1 x Screw Terminal
native Resolution and pixel pitch • If Touch Screen: 1 x DB9F RS-232 communication
1600 x 1200 (UXGA) - 0.255 (H) x 0.255 (V) mm product Dimensions and Weight
aspect Ratio and Response time W:534.00 [21.02’’] x H:481.00 [18.94’’] x D:147.00 [4.99’’] mm [inch]
Approx 14kg / 31lbs
4:3 - 20ms (typ) product carton size and Weight
Light intensity and contrast Ratio L:700.00 [27.56’’] x W:660.00 [25.98’’] x H:220.00 [8.66’’] mm [inch]
250 cd/m² (typ) - 500:1 (typ) 15.5kg / 34.1lbs
View angle / Max colors factory options
88 deg. (up/down/left/right) - 16.7 million • 24VDC Power Solution
• Resistive Touchscreen 8 wire
synchronization signal auto-detect • Color Calibrated models (ECDIS)
Digital Separate Sync., Composite Sync., Sync. On Green accessories
synchronization Range Bracket (tilt up/down), Rotary Bracket (left/right), VESA Bracket,
Sun Visor, Water Cover
15.0 kHz to 91 kHz (H) - 56 Hz to 75 Hz (V) capabilities / prepared for
optimal Resolution and Hz N/A
1600 x 1200 @ 60 Hz
operating temperature
Detectable Resolutions -15.0°C / 5.0°F to 55.0°C / 131.0°F
640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024,
1600 x 1200 storage temperature
composite Video input(s) Dry Heat: 70.0°C / 158.0°F (IEC 60068-2-2 (1974), Test Bd)
Cold: -40.0°C / -40.0°F (IEC 60068-2-1 (1990), Test Ad)
Composite (BNC) Humidity up to 95%
supported Video signals ip Rating
COMPOSITE Compatible (NTSC/PAL/SECAM Interlaced) Protection (EN60529): IP66 front - IP20 rear
product features compass safe Distance
Front Bonded, Qualifi ed for shock, vibration & EMI, Standard: 115.00 [45.28’’] - Steering: 70.00 [27.56’’] cm [inch]
Fully adjustable backlight (0-100%), PIP (Picture-In-Picture),
Serial Communication (SCOM), Front mounted handles type approval, testing and certifi cates
power specifi cations and consumption IEC 60945 4th (EN 60945:2002), NK - Nippon Kaiji Kyokai,
115/230VAC - 50/60Hz or 24VDC input, 75W (typ) - 100W (max) DNV - Det Norske Veritas, GL - Germanischer Lloyd,
BV - Bureau Veritas, LRS - Lloyd’s Register,
User controls and activity ABS - American Bureau of Shipping,
EU-RO-MR - Mutual Recognition,
Power On/Off (push button), Brightness Control Rotary Knob, CCS - China Classifi cation Society
2 x hotkeys, Mode Status LED, On Screen Display control (OSD/OSM) MIL Testing Summary:
(behind hatch), Serial Remote Control DIP-Switch Settings (rear) Shock: 50g / 30ms (IEC 60068-2-27 (1987), Test Ea)
Grade A Shock: Class 1 (hard-mounted) (MIL-S-901D)
Vibration Testing: 4-33Hz, MIL-STD-167-1 - Console Mounted
EMI Testing: MIL-STD 461E 1999, CE 101, CE 102, CS 101,
CS 114, CS 116, RE 101, RE 102, RS 101, RS 103
