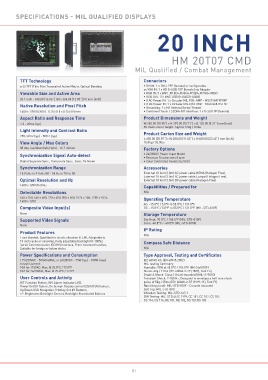

specifications - MiL QUaLifieD DispLays

20 incH

HM 20T07 CMD

MIL Qualified / Combat Management

tft technology connectors
a-Si TFT (Thin Film Transistor) Active Matrix, Optical Bonding • DVI IN: 1 x DVI-I 29P (female) or confi gurable
as VGA IN: 1 x HD D-SUB 15P (female) via Adapter
Viewable size and active area • RGB IN: 5 x BNC J01(R)+J03(G)+J05(B)+J07(H)+J08(V)
• RGB OUT: 3 x BNC J02(R)+J04(G)+J06(B)
20.1 inch - 408.00 [16.06’’] (H) x 306.00 [12.05’’] (V) mm [inch] • If AC Power IN: 1 x Circular MIL P/N: AMP - MS27468T9F98P
native Resolution and pixel pitch • If DC Power IN: 1 x Circular MIL P/N: AMP - MS27468T15F5P
• Grounding: 1 x M4 Internal Screw Thread
1600 x 1200 (UXGA) - 0.255 (H) x 0.255 (V) mm • Combined Touch / SCOM+BIT Interface: 1 x D-SUB 9P (female)
aspect Ratio and Response time product Dimensions and Weight
4:3 - 20ms (typ) W:482.00 [18.98’’] x H:399.00 [15.71’’] x D:135.00 [5.31’’] mm [inch]
9U Rack size in height. Approx 12kg / 26lbs
Light intensity and contrast Ratio
250 cd/m² (typ) - 500:1 (typ) product carton size and Weight
L:650.00 [25.59’’] x W:280.00 [11.02’’] x H:600.00 [23.62’’] mm [inch]
View angle / Max colors 15.0kg / 33.0lbs
88 deg. (up/down/left/right) - 16.7 million factory options
synchronization signal auto-detect • 24/28VDC Power Input Model
• Resistive Touchscreen 8 wire
Digital Separate Sync., Composite Sync., Sync. On Green • Color Calibrated models (ECDIS)
synchronization Range accessories
15.0 kHz to 91 kHz (H) - 56 Hz to 75 Hz (V) External 10 foot (3.0m) AC power cable NEMA (Halogen Free),
External 10 foot (3.0m) AC power cable Europe (Halogen Free),
optimal Resolution and Hz External 10 foot (3.0m) DC power cable (Halogen Free)
1600 x 1200 @ 60 Hz capabilities / prepared for
Detectable Resolutions N/A
640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, operating temperature
1600 x 1200
AC: -15.0°C / 5.0°F to 55.0°C / 131.0°F
composite Video input(s) DC: -15.0°C / 5.0°F to 55.0°C / 131.0°F (MIL-STD-810F)
None storage temperature
supported Video signals Dry Heat: 70.0°C / 158.0°F (MIL-STD-810F)
None Cold: -40.0°C / -40.0°F (MIL-STD-810F)
ip Rating
product features N/A
Front Bonded, Qualifi ed for shock, vibration & EMI, Adaptable to
19 inch racks or consoles, Fully adjustable backlight (0-100%), compass safe Distance
Serial Communication (SCOM) Interface, Front mounted handles,
Suitable for bridge or below decks N/A
power specifi cations and consumption type approval, testing and certifi cates
115/230VAC - 50/60/400Hz or 24/28VDC - 75W (typ) - 100W (max) IEC 60945 4th (EN 60945:2002)
Inrush Current: MIL Testing Summary:
10A for 115VAC, Max. @ 25.0°C / 77.0°F Humidity: 95% at 40.0°C / 104.0°F (Mil-Std 810F)
10A for 24/28VDC, Max. @ 25.0°C / 77.0°F Shock: 60g / 11ms (IEC 60068-2-27 (1987), Test Ea)
Grade A Shock: Class 1 (hard-mounted) (MIL-S-901D)
User controls and activity Transient Shock: 2-280 Hz, Designed to envelope a half sine shock
BIT Function Button, INV Alarm Indicator LED, pulse of 50g / 35ms (IEC 60068-2-57 (1999-11), Test Ff)
Power On/Off Button, On Screen Display control (OSD/OSM) button, Rain (drip proof): MIL-STD-810F - Console mounted
Up/Down OSD Navigation / Hotkey Set #1 Buttons, Salt Fog: MIL-STD-810F
+/- Brightness Backlight Control, Backlight Illuminated Buttons Vibration Testing: MIL-STD-167-1
EMI Testing: MIL-STD 461E 1999, CE 101, CE 102, CS 101,
CS 114, CS 116, RE 101, RE 102, RS 101,RS 103
