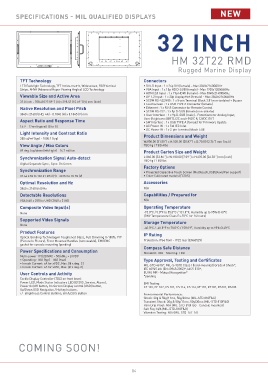

specifications - MiL QUaLifieD DispLays

32 incH

HM 32T22 RMD

Rugged Marine Display

tft technology connectors
LED Backlight Technology, TFT Active-matrix, Widescreen, RGB Vertical • DVI-D Input : 1 x 24p DVI (female) - Max 3840x2160@30Hz
Stripe, AHVA (Advanced Hyper Viewing Angles) LCD Technology • VGA Input : 1 x 15p HD D-SUB (female) - Max 1920x1200@60Hz
• HDMI 2.0 Input : 1 x 19p HDMI (female) - Max 3840x2160@60Hz
Viewable size and active area • DP 1.2 Input : 1 x 20p DisplayPort (female) - Max 3840x2160@60Hz
32.0 inch - 708.48 [27.89’’] (H) x 398.52 [15.69’’] (V) mm [inch] • SCOM RS-422/485 : 1 x 5-pin Terminal Block 3.81 non-isolated + Buzzer
• Touchscreen : 1 x USB TYPE A Connector (female)
native Resolution and pixel pitch • Ethernet : 1 x RJ45 Connector for Remote Control
3840 x 2160 (UHD, 4K) - 0.1845 (H) x 0.1845 (V) mm • SCOM RS-232 : 1 x 9p D-SUB (female) non-isolated
• User Interface : 1 x 9p D-SUB (male) - Potentiometer Analog Input,
aspect Ratio and Response time User Brightness (BRT), I2C and +5VDC & 12VDC OUT
• SW Interface : 1 x USB TYPE A (female) for Firmware Update
16:9 - 12ms (typical) (G to G) • AC Power IN : 1 x Std IEC Inlet
• DC Power IN : 1 x 2-pin Terminal Block 5.08
Light intensity and contrast Ratio
350 cd/m² (typ) - 1000:1 (typ) product Dimensions and Weight
W:800.00 [31.50’’] x H:530.00 [20.87’’] x D:70.00 [2.76’’] mm [inch]
View angle / Max colors TBD kg / TBD.4lbs
89 deg. (up/down/left/right) - 16.7 million product carton size and Weight
synchronization signal auto-detect L:860.00 [33.86’’] x W:180.00 [7.09’’] x H:670.00 [26.38’’] mm [inch]
TBD kg / TBD lbs
Digital Separate Sync., Sync. On Green factory options
synchronization Range • Projected Capacitive Touch Screen (Multitouch,USB,Glove/Pen support)
31.44 kHz to 133.31 kHz (H) - 30 Hz to 70 Hz (V) • Color Calibrated models (ECDIS)
optimal Resolution and Hz accessories
3840 x 2160 @ 60 Hz N/A
Detectable Resolutions capabilities / prepared for
VGA (640 x 350) to UHD (3840 x 2160) N/A
composite Video input(s) operating temperature
None -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95% @ 40°C
(DNV Temperature Class B +70°C for 16 hours)
supported Video signals storage temperature
None
-40.0°C / -40.0°F to 70.0°C / 158.0°F, Humidity up to 95% @ 40°C
product features ip Rating
Optical Bonding Technologym Toughened Glass, Full Dimming 0-100%, PIP
(Picture In Picture), Front Mounted Handles (removeable), EMI/EMC Protection: IP66 front - IP22 rear (EN60529)
gasket for console mounting (pending) compass safe Distance
power specifi cations and consumption Standard: TBD - Steering: TBD
Multi-power 115/230VAC - 50/60Hz + 24VDC
• Operating: TBD (typ) - TBD (max) type approval, testing and certifi cates
• Inrush Current: xA for xVDC, Max. (@ x deg. C) MIL-STD 461G*, MIL-S-901D Class I (hard-mounted) Grade A Shock*,
• Inrush Current: xA for xVAC, Max. (@ x deg. C)
IEC 60945 4th (EN 60945:2002)*, IACS E10*,
User controls and activity EU RO MR - Mutual Recognition*
*pending
Tactile Display Controller (TDC) on front bezel:
Power LED, Mode Status Indicators LED (ECDIS, Service, Alarm), EMI Testing:
Power On/Off button, On Screen Display control (OSD) button, CE 101, CE 102, CS 101, CS 114, CS 116, RE101, RE102, RS101, RS103
Up/Down OSD Navigation / Hotkey buttons,
+/- Brightness Control Buttons, BIT/ECDIS Button Environmental Performance:
Shock: 30g & 50g/11ms, 50g/30ms (MIL-STD 810F&G)
Transient Shock: 30g & 50g/11ms, 50g/30ms (MIL-STD 810F&G)
Rain Drip Proof: N/A (MIL-STD-810F&G - Console mounted)
Salt Fog: N/A (MIL-STD-810F&G)
Vibration Testing: N/A (MIL-STD-167-1A)
